canvas裁剪clip()函數的具體使用

2024-09-05 07:22:23

字體：大中小

來源：轉載

供稿：網友

在canvas中，可以使用clip()函數裁剪區域，設定裁剪區域后，只有在區域內的圖像才能顯示，其余部分會被屏蔽掉

未使用裁剪繪制一個圓

<!DOCTYPE html>  <html lang="en">  <head>      <meta charset="UTF-8">      <title></title>      <style>          *{margin:0; padding:0;}          html, body{width:100%; height:100%; overflow:hidden; background-color:#AFAFAF;}      </style>  </head>  <body>      <canvas id="canvas"></canvas>      <script>          var canvas = document.getElementById('canvas'),              context = canvas.getContext('2d');          canvas.width = document.body.clientWidth;          canvas.height = document.body.clientHeight;          context.lineWidth = 3;          context.strokeStyle = 'red';          context.beginPath();          context.arc(200, 200, 100, (Math.PI / 180) * 0, (Math.PI / 180) * 360, false);          context.stroke();          context.closePath();      </script>  </body>  </html>

效果

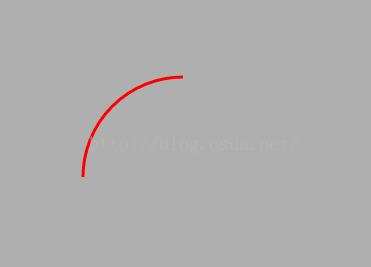

使用clip()裁剪區域

<!DOCTYPE html>  <html lang="en">  <head>      <meta charset="UTF-8">      <title></title>      <style>          *{margin:0; padding:0;}          html, body{width:100%; height:100%; overflow:hidden; background-color:#AFAFAF;}      </style>  </head>  <body>      <canvas id="canvas"></canvas>      <script>          var canvas = document.getElementById('canvas'),              context = canvas.getContext('2d');          canvas.width = document.body.clientWidth;          canvas.height = document.body.clientHeight;          context.lineWidth = 3;          context.strokeStyle = 'red';          context.rect(0, 0, 200, 200);          context.clip();          context.beginPath();          context.arc(200, 200, 100, (Math.PI / 180) * 0, (Math.PI / 180) * 360, false);          context.stroke();          context.closePath();      </script>  </body>  </html>

效果

也可以使用arc繪制圓形的剪裁區域

<!DOCTYPE html>  <html lang="en">  <head>      <meta charset="UTF-8">      <title></title>      <style>          *{margin:0; padding:0;}          html, body{width:100%; height:100%; overflow:hidden; background-color:#AFAFAF;}      </style>  </head>  <body>      <canvas id="canvas"></canvas>      <script>          var canvas = document.getElementById('canvas'),              context = canvas.getContext('2d');          canvas.width = document.body.clientWidth;          canvas.height = document.body.clientHeight;          context.lineWidth = 3;          context.strokeStyle = 'red';          context.arc(100, 100, 150, (Math.PI / 180) * 0, (Math.PI / 180) * 360, false);          context.clip();          context.beginPath();          context.arc(200, 200, 100, (Math.PI / 180) * 0, (Math.PI / 180) * 360, false);          context.stroke();          context.closePath();      </script>  </body>  </html>

效果

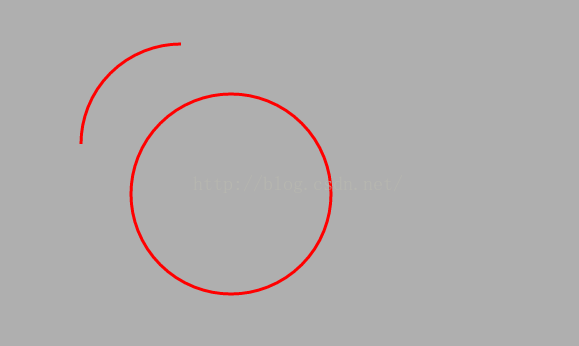

使用save和restore實現只裁剪單個路徑

<!DOCTYPE html>  <html lang="en">  <head>      <meta charset="UTF-8">      <title></title>      <style>          *{margin:0; padding:0;}          html, body{width:100%; height:100%; overflow:hidden; background-color:#AFAFAF;}      </style>  </head>  <body>      <canvas id="canvas"></canvas>      <script>          var canvas = document.getElementById('canvas'),              context = canvas.getContext('2d');          canvas.width = document.body.clientWidth;          canvas.height = document.body.clientHeight;          context.lineWidth = 3;          context.strokeStyle = 'red';          context.save();          context.rect(0, 0, 200, 200);          context.clip();          context.beginPath();          context.arc(200, 200, 100, (Math.PI / 180) * 0, (Math.PI / 180) * 360, false);          context.stroke();          context.closePath();          context.restore();          context.beginPath();          context.arc(250, 250, 100, (Math.PI / 180) * 0, (Math.PI / 180) * 360, false);          context.stroke();          context.closePath();      </script>  </body>  </html>

效果
