1、準備安裝

查看當前oracle版本，確定是比較舊的11.2.0.1

[oracle@hch_test_121_90 ~]$ rlwrap sqlplus / as sysdba SQL*Plus: Release 11.2.0.1.0 Production on Fri Mar 17 15:20:45 2017 Copyright (c) 1982, 2009, Oracle. All rights reserved. Connected to: Oracle Database 11g Enterprise Edition Release 11.2.0.1.0 - 64bit Production With the Partitioning, OLAP, Data Mining and Real Application Testing options SQL> exit Disconnected from Oracle Database 11g Enterprise Edition Release 11.2.0.1.0 - 64bit Production With the Partitioning, OLAP, Data Mining and Real Application Testing options [oracle@hch_test_121_90 ~]$

上傳11.2.0.4的安裝包p13390677_112040_Linux-x86-64_1of7.zip、p13390677_112040_Linux-x86-64_2of7.zip到服務器上。Oracle11.2.0.4的安裝包下載，請查閱我的blog地址，這上面有下載源：http://blog.csdn.net/mchdba/article/details/51418063

升級準備：

解壓縮： [oracle@hch_test_121_90 oracle]$ unzip p13390677_112040_Linux-x86-64_1of7.zip [oracle@hch_test_121_90 oracle]$ unzip p13390677_112040_Linux-x86-64_2of7.zip 打開啟動圖像界面 [oracle@hch_test_121_90 oracle]$ cd database/ [oracle@hch_test_121_90 database]$ ./runInstaller Starting Oracle Universal Installer... Checking Temp space: must be greater than 120 MB. Actual 6024 MB Passed Checking swap space: must be greater than 150 MB. Actual 1798 MB Passed Checking monitor: must be configured to display at least 256 colors. Actual 16777216 Passed Preparing to launch Oracle Universal Installer from /tmp/OraInstall2017-03-17_03-11-29PM. Please wait ...[oracle@hch_test_121_90 database]$ [oracle@hch_test_121_90 database]$

2、開始升級

C:/pic/oracle/100.png，填寫郵箱地址（也可以忽略不填寫），然后下一步

oracle11g,oracle11g升級教程


oracle11g,oracle11g升級教程


oracle11g,oracle11g升級教程

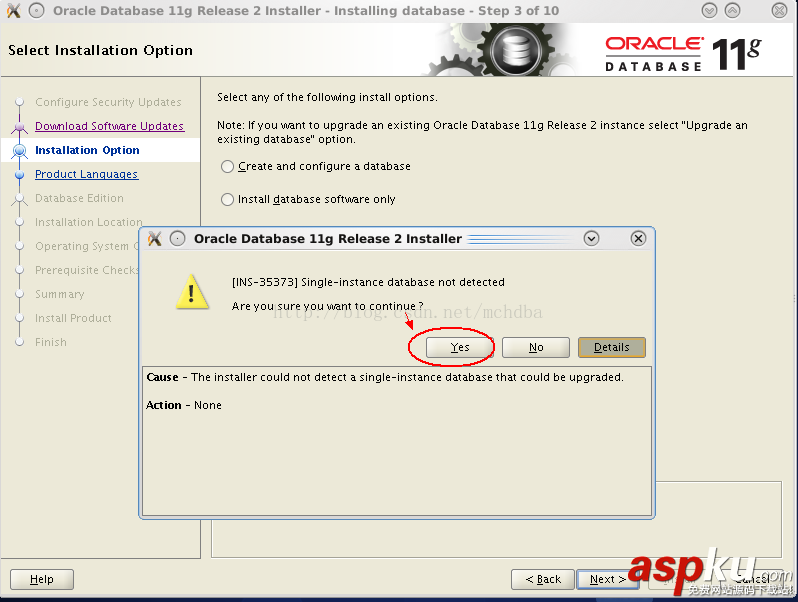

然后繼續進行，有個INS-35373錯誤，選擇Yes，如下

oracle11g,oracle11g升級教程

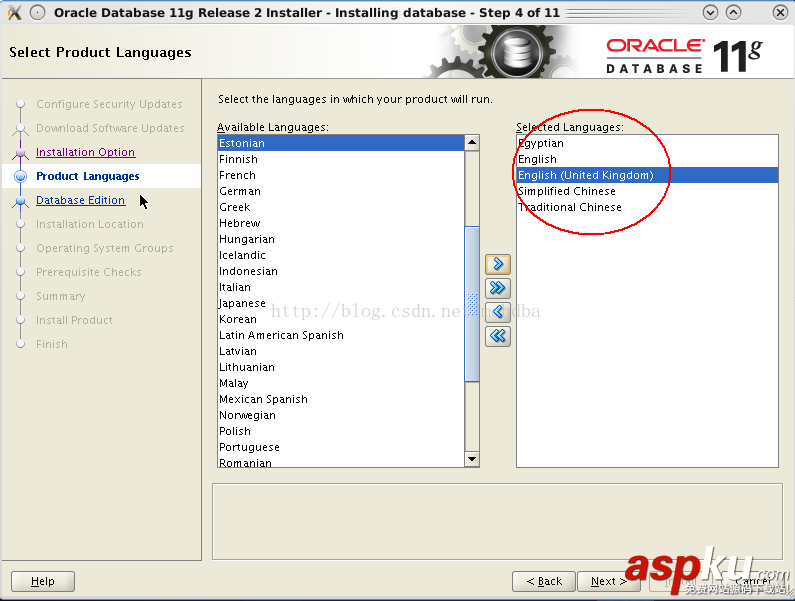

然后選擇好語言種類，簡體中文、繁體中文、英語、美式英語等，如104.png所示：

oracle11g,oracle11g升級教程

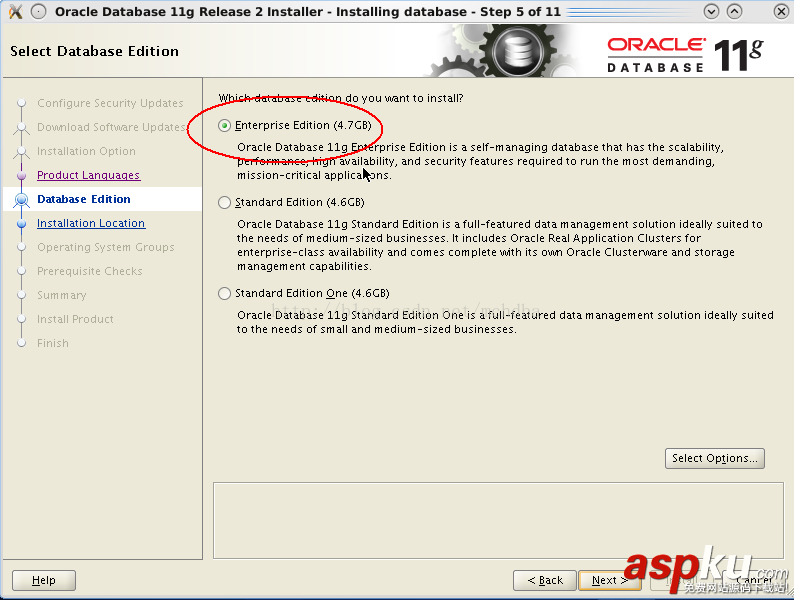

繼續下一步，選擇企業版，如

oracle11g,oracle11g升級教程

接下來，開始選擇oracle目錄了，是選擇新建的目錄呢還是選擇原來的老版本11.2.0.1的目錄呢？這里最好選擇一個新的目錄，因為萬一升級失敗了，老的oracle版本軟件目錄沒有被覆蓋掉，還可以繼續使用的，否則升級失敗，就基本只有徹底暴力清除所有文件以及注冊信息，之后重新安裝oracle了。

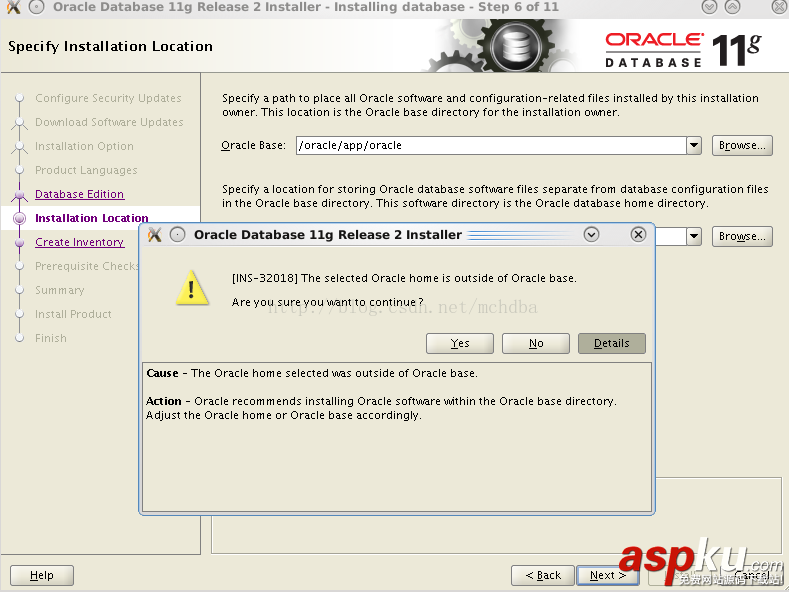

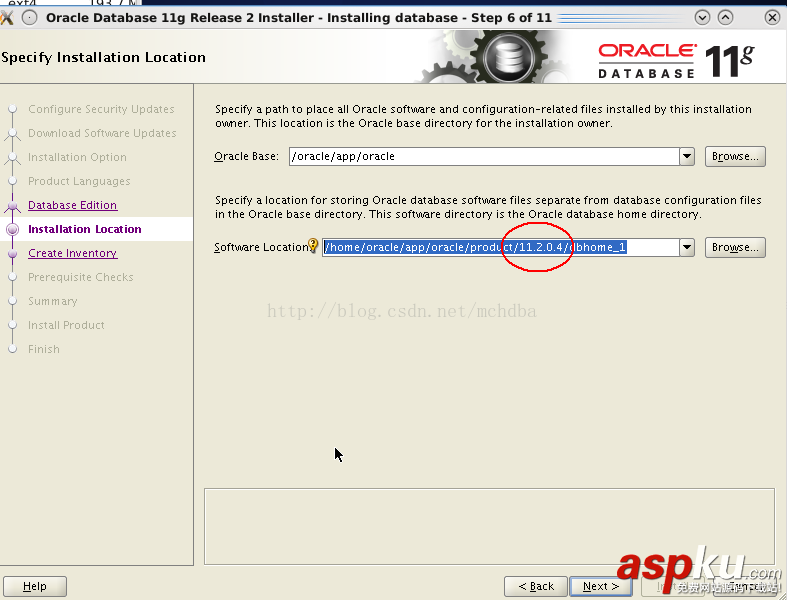

我這里就選擇一個新的目錄11.2.0.4的目錄，如106.png、107.png所示

oracle11g,oracle11g升級教程

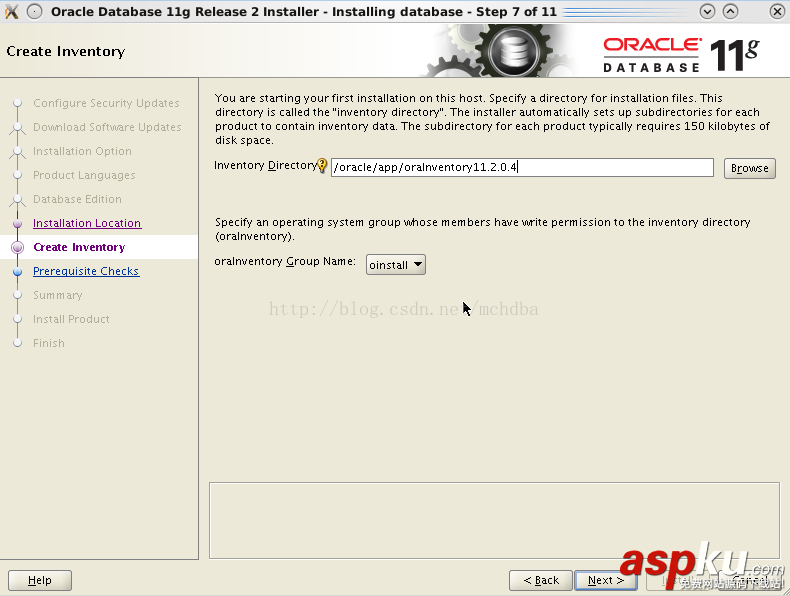

接下來，繼續，選擇新的的Inventory Directory目錄，默認的會報錯，如108.png所示

oracle11g,oracle11g升級教程

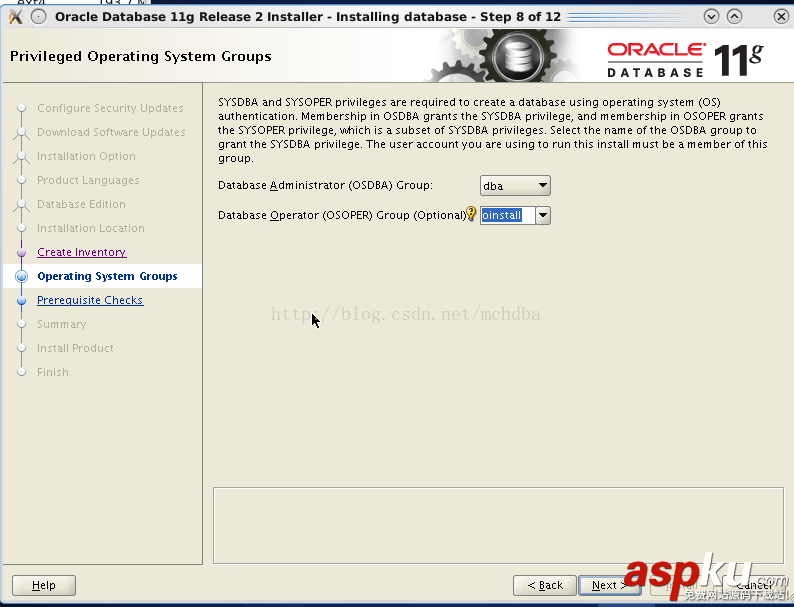

接下來選擇用戶組和操作組，如109.png所示：

oracle11g,oracle11g升級教程

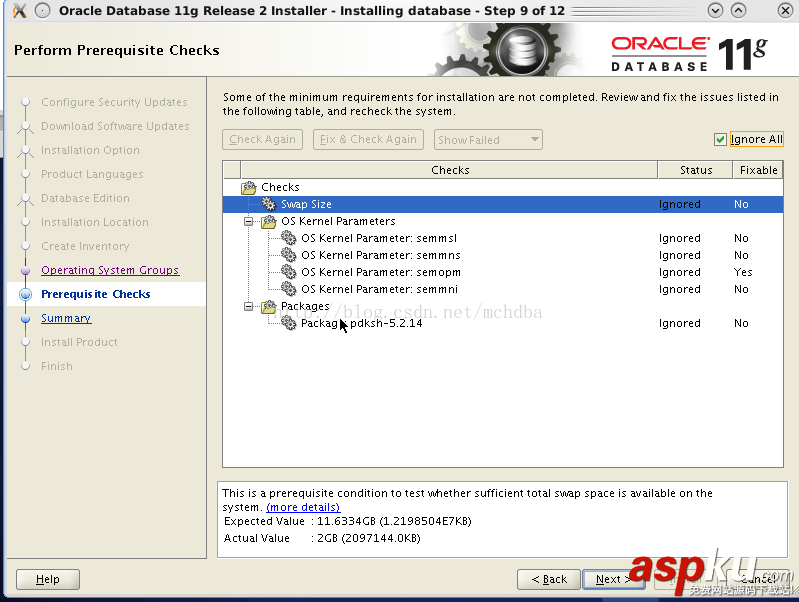

接下來，會有checking各種lib包，一些比較偏的，缺少了也沒事，直接Ignore忽略掉就ok，如110.png所示：

oracle11g,oracle11g升級教程

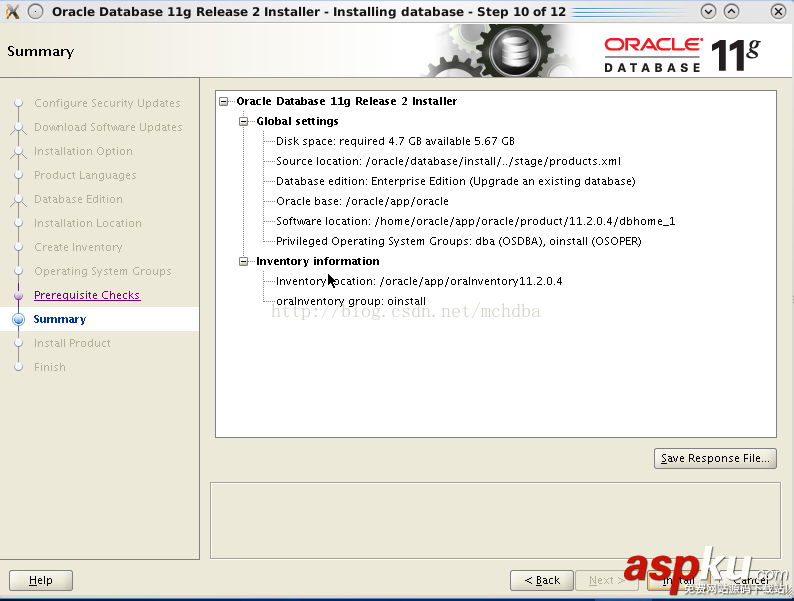

下一步看安裝的目錄以及基本信息，如111.png所示：

oracle11g,oracle11g升級教程


oracle11g,oracle11g升級教程


oracle11g,oracle11g升級教程

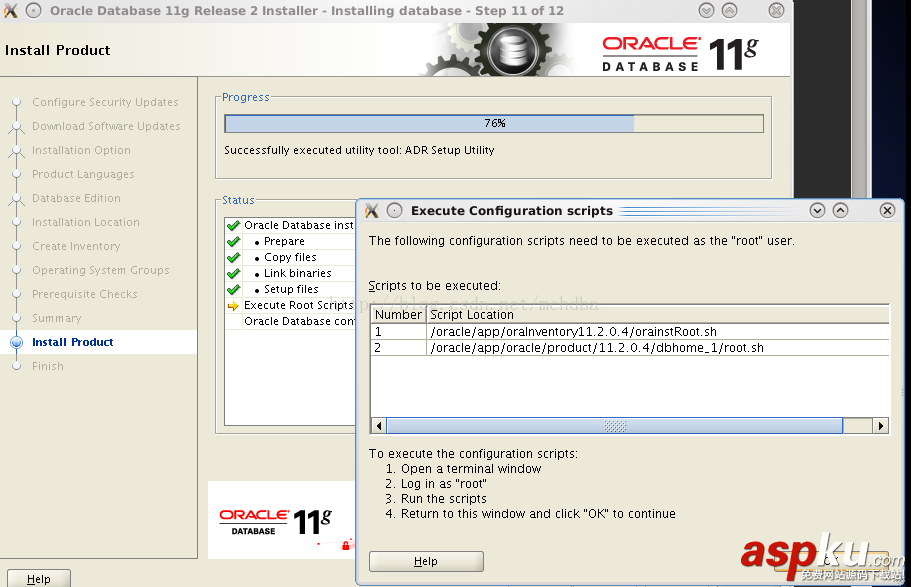

重新打開xshell，ssh連接到數據庫，在命令行去執行命令：

[root@hch_test_121_90 oracle]# bash -x/oracle/app/oraInventory11.2.0.4/orainstRoot.sh[root@hch_test_121_90 oracle]# bash -x/oracle/app/oracle/product/11.2.0.4/dbhome_1/root.sh

執行過程如下：

[root@hch_test_121_90 oracle]# bash -x /oracle/app/oraInventory11.2.0.4/orainstRoot.sh + AWK=/bin/awk + CHMOD=/bin/chmod + CHGRP=/bin/chgrp + CP=/bin/cp + ECHO=/bin/echo + MKDIR=/bin/mkdir ++ /usr/bin/id ++ /bin/awk '-F(' '{print $1}' ++ /bin/awk -F= '{print $2}' + RUID=0 + '[' 0 '!=' 0 ']' + '[' -d /etc ']' + /bin/chmod 755 /etc + '[' -f /oracle/app/oraInventory11.2.0.4/oraInst.loc ']' + /bin/cp /oracle/app/oraInventory11.2.0.4/oraInst.loc /etc/oraInst.loc + /bin/chmod 644 /etc/oraInst.loc + /bin/echo 'Changing permissions of /oracle/app/oraInventory11.2.0.4. Adding read,write permissions for group. Removing read,write,execute permissions for world. ' Changing permissions of /oracle/app/oraInventory11.2.0.4. Adding read,write permissions for group. Removing read,write,execute permissions for world. + /bin/chmod -R g+rw,o-rwx /oracle/app/oraInventory11.2.0.4 + '[' 0 '!=' 0 ']' + /bin/echo 'Changing groupname of /oracle/app/oraInventory11.2.0.4 to oinstall.' Changing groupname of /oracle/app/oraInventory11.2.0.4 to oinstall. + /bin/chgrp -R oinstall /oracle/app/oraInventory11.2.0.4 + '[' 0 '!=' 0 ']' + /bin/echo 'The execution of the script is complete.' The execution of the script is complete. [root@hch_test_121_90 oracle]# [root@hch_test_121_90 oracle]# [root@hch_test_121_90 ~]# sh /oracle/app/oracle/product/11.2.0.4/dbhome_1/root.sh Performing root user operation for Oracle 11g The following environment variables are set as:  ORACLE_OWNER= oracle  ORACLE_HOME= /oracle/app/oracle/product/11.2.0.4/dbhome_1 Enter the full pathname of the local bin directory: [/usr/local/bin]: /oracle/app/oracle/product/11.2.0.4/dbhome_1/bin The contents of "dbhome" have not changed. No need to overwrite. The contents of "oraenv" have not changed. No need to overwrite. The contents of "coraenv" have not changed. No need to overwrite. Entries will be added to the /etc/oratab file as needed by Database Configuration Assistant when a database is created Finished running generic part of root script. Now product-specific root actions will be performed. Finished product-specific root actions. [root@hch_test_121_90 ~]#

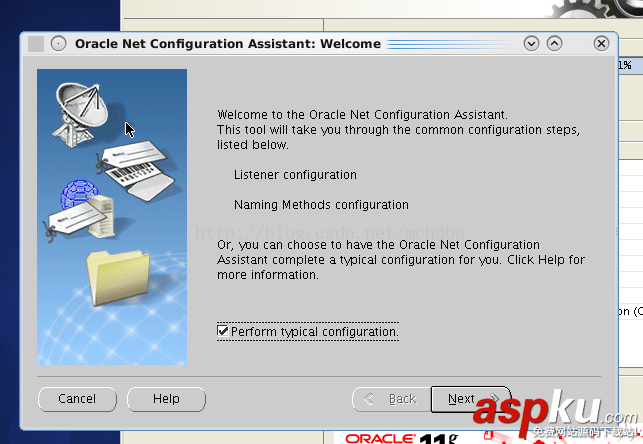

之后回到vnc遠程的窗口，點擊界面的OK，會提示安裝Oracle Net Configuration Assistant: Welcome操作：


oracle11g,oracle11g升級教程

設置sys密碼，如115.png所示

oracle11g,oracle11g升級教程

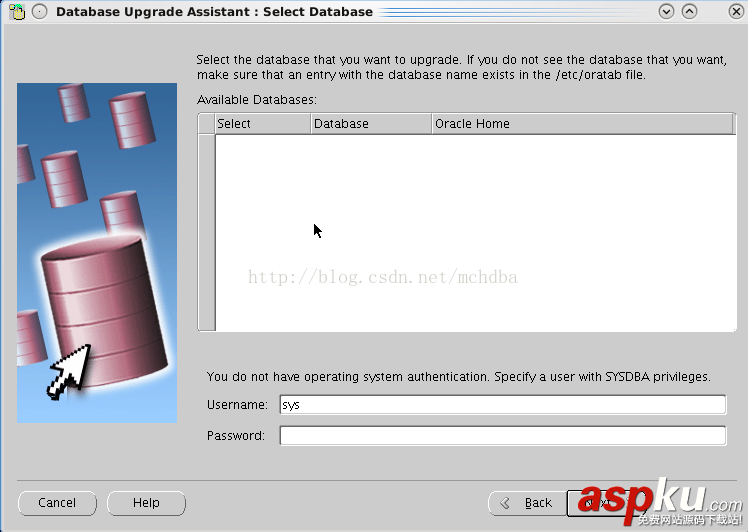

看到這里，問題來了，中間沒有數據庫讓你選擇去升級，問題在哪里呢，在/etc/oratab沒有配置，所以趕緊去配置：

[root@hch_test_121_90 ~]# more /etc/oratab # # This file is used by ORACLE utilities. It is created by root.sh # and updated by either Database Configuration Assistant while creating # a database or ASM Configuration Assistant while creating ASM instance. # A colon, ':', is used as the field terminator. A new line terminates # the entry. Lines beginning with a pound sign, '#', are comments. # # Entries are of the form: # $ORACLE_SID:$ORACLE_HOME:<N|Y>: # # The first and second fields are the system identifier and home # directory of the database respectively. The third filed indicates # to the dbstart utility that the database should , "Y", or should not, # "N", be brought up at system boot time. # # Multiple entries with the same $ORACLE_SID are not allowed. # powerdes:/hom/oracle/app/oracle/product/11.2.0/dbhome_1:Y [root@hch_test_121_90 ~]#

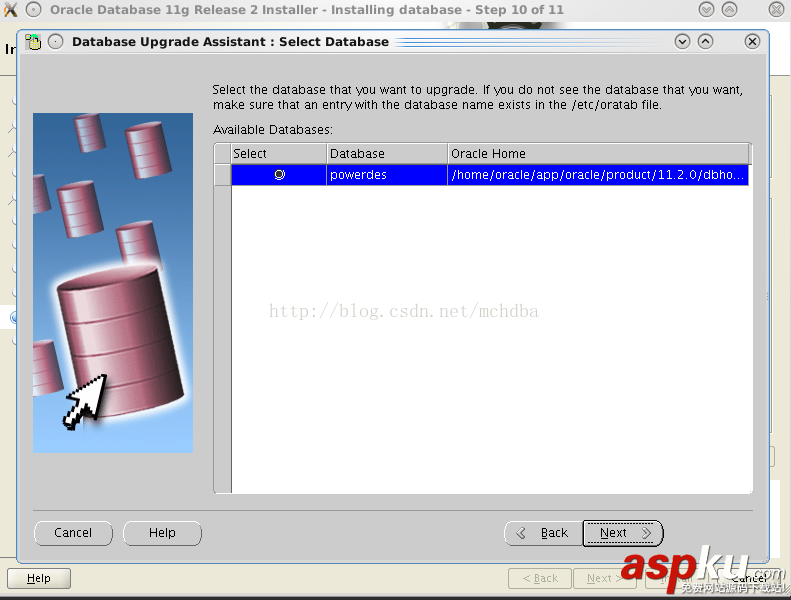

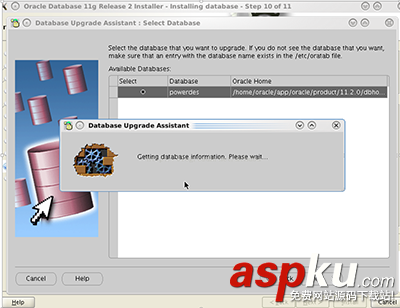

配置完后，前面的步驟重新來一遍，到此就會有下面的出現的database選擇項讓我們選擇，如116.png、117.png、118.png所示：

oracle11g,oracle11g升級教程
