前言
項目中用到了Mybatis調用PostgreSQL存儲過程（自定義函數）相關操作，由于PostgreSQL自帶數組類型，所以有一個自定義函數的入?yún)⒕褪且粋€(gè)int數組，形如：
創建自定義函數
如圖，第一步首先是創建一個用于調用的自定義函數，功能也很簡單，遍歷參數數組的每一個元素和t_student表的stuid做比較，若一致，則修改那條記錄的stuname（在其后拼接一段字符串），該自定義函數的DLL語句如下：
CREATE OR REPLACE FUNCTION "public"."func_arr_update"(ids _int4) RETURNS "pg_catalog"."void" AS $BODY$DECLARE scount INTEGER; rownum integer := 1;BEGIN scount:=array_length(ids,1); while rownum <= scount LOOP update t_student set stuname = stuname || ' has been modified. ' where stuid = ids[rownum]; rownum := rownum + 1; END LOOP; RETURN;END$BODY$ LANGUAGE 'plpgsql' VOLATILE COST 100;ALTER FUNCTION "public"."func_arr_update"(ids _int4) OWNER TO "postgres";
很簡單，獲取到參數數組的長度后開始循環，匹配stuid并更新stuname，直接在數據庫調用一下看看結果：
如上圖，可以看到成功修改了stuid為101，102和103的stuname，自定義函數已經沒問題了，接下來就具體看一下如何通過mybatis調用。
調用自定義函數

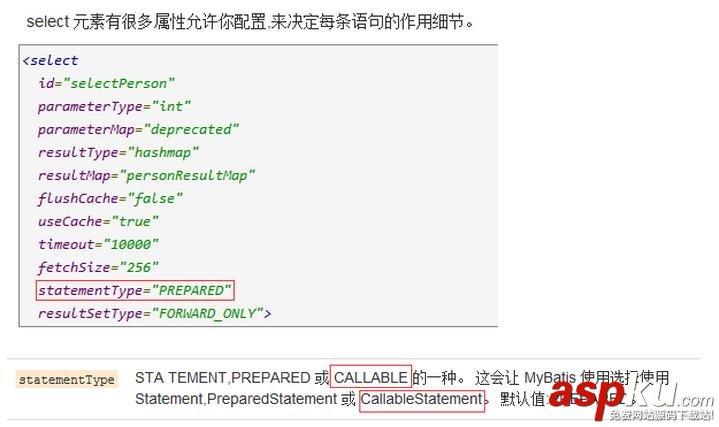

mybatis中調用自定義函數很簡單，Mapper XML文件中的select元素直接提供了屬性支持——statementType，在官方文檔中可以看到：
如上圖，statementType的值默認是PREPARED，也就是說底層默認會使用jdbc的PreparedStatement，而我們都知道jdbc調用存儲過程時需要用CallableStatement，所以在這里我們需要將statementType的值設置為CALLABLE。
mybatis默認的ArrayTypeHandler
調用存儲過程很簡單，那么接下來的問題是如何在mybatis中傳一個數組參數到存儲過程中呢？這里就要用到另外一個概念——TypeHandler，這是mybatis提供的自定義類型轉換器，mybatis在預編譯語句對象（PreparedStatement）設置參數時或是從結果集中取值時都會用類型處理器將獲取的值以合適的方式轉換成Java類型，mybatis默認實現了一部分TypeHandler供我們使用，當我們沒有指定TypeHandler時（大多數情況都不會指定），mybatis會根據參數或者返回結果的不同，默認為我們選擇合適的TypeHandler處理，下面可以通過查看源碼大概看一下默認的TypeHandler，導入源碼后可以在org.apache.ibatis.type包下找到一個TypeHandlerRegistry類，typeHandler正是通過這個類管理的，先看一下它的構造方法：
public TypeHandlerRegistry() { register(Boolean.class, new BooleanTypeHandler()); register(boolean.class, new BooleanTypeHandler()); register(JdbcType.BOOLEAN, new BooleanTypeHandler()); register(JdbcType.BIT, new BooleanTypeHandler()); register(Byte.class, new ByteTypeHandler()); register(byte.class, new ByteTypeHandler()); register(JdbcType.TINYINT, new ByteTypeHandler()); register(Short.class, new ShortTypeHandler()); register(short.class, new ShortTypeHandler()); register(JdbcType.SMALLINT, new ShortTypeHandler()); register(Integer.class, new IntegerTypeHandler()); register(int.class, new IntegerTypeHandler()); register(JdbcType.INTEGER, new IntegerTypeHandler()); register(Long.class, new LongTypeHandler()); register(long.class, new LongTypeHandler()); register(Float.class, new FloatTypeHandler()); register(float.class, new FloatTypeHandler()); register(JdbcType.FLOAT, new FloatTypeHandler()); register(Double.class, new DoubleTypeHandler()); register(double.class, new DoubleTypeHandler()); register(JdbcType.DOUBLE, new DoubleTypeHandler()); register(String.class, new StringTypeHandler()); register(String.class, JdbcType.CHAR, new StringTypeHandler()); register(String.class, JdbcType.CLOB, new ClobTypeHandler()); register(String.class, JdbcType.VARCHAR, new StringTypeHandler()); register(String.class, JdbcType.LONGVARCHAR, new ClobTypeHandler()); register(String.class, JdbcType.NVARCHAR, new NStringTypeHandler()); register(String.class, JdbcType.NCHAR, new NStringTypeHandler()); register(String.class, JdbcType.NCLOB, new NClobTypeHandler()); register(JdbcType.CHAR, new StringTypeHandler()); register(JdbcType.VARCHAR, new StringTypeHandler()); register(JdbcType.CLOB, new ClobTypeHandler()); register(JdbcType.LONGVARCHAR, new ClobTypeHandler()); register(JdbcType.NVARCHAR, new NStringTypeHandler()); register(JdbcType.NCHAR, new NStringTypeHandler()); register(JdbcType.NCLOB, new NClobTypeHandler()); register(Object.class, JdbcType.ARRAY, new ArrayTypeHandler()); register(JdbcType.ARRAY, new ArrayTypeHandler()); register(BigInteger.class, new BigIntegerTypeHandler()); register(JdbcType.BIGINT, new LongTypeHandler()); register(BigDecimal.class, new BigDecimalTypeHandler()); register(JdbcType.REAL, new BigDecimalTypeHandler()); register(JdbcType.DECIMAL, new BigDecimalTypeHandler()); register(JdbcType.NUMERIC, new BigDecimalTypeHandler()); register(Byte[].class, new ByteObjectArrayTypeHandler()); register(Byte[].class, JdbcType.BLOB, new BlobByteObjectArrayTypeHandler()); register(Byte[].class, JdbcType.LONGVARBINARY, new BlobByteObjectArrayTypeHandler()); register(byte[].class, new ByteArrayTypeHandler()); register(byte[].class, JdbcType.BLOB, new BlobTypeHandler()); register(byte[].class, JdbcType.LONGVARBINARY, new BlobTypeHandler()); register(JdbcType.LONGVARBINARY, new BlobTypeHandler()); register(JdbcType.BLOB, new BlobTypeHandler()); register(Object.class, UNKNOWN_TYPE_HANDLER); register(Object.class, JdbcType.OTHER, UNKNOWN_TYPE_HANDLER); register(JdbcType.OTHER, UNKNOWN_TYPE_HANDLER); register(Date.class, new DateTypeHandler()); register(Date.class, JdbcType.DATE, new DateOnlyTypeHandler()); register(Date.class, JdbcType.TIME, new TimeOnlyTypeHandler()); register(JdbcType.TIMESTAMP, new DateTypeHandler()); register(JdbcType.DATE, new DateOnlyTypeHandler()); register(JdbcType.TIME, new TimeOnlyTypeHandler()); register(java.sql.Date.class, new SqlDateTypeHandler()); register(java.sql.Time.class, new SqlTimeTypeHandler()); register(java.sql.Timestamp.class, new SqlTimestampTypeHandler()); // issue #273 register(Character.class, new CharacterTypeHandler()); register(char.class, new CharacterTypeHandler()); }如上所示，這就是全部默認的typeHandler了，注意一下46，47行可以看到默認有一個ArrayTypeHandler，順便看一下它的源碼：
/* * Copyright 2009-2012 The MyBatis Team * * Licensed under the Apache License, Version 2.0 (the "License"); * you may not use this file except in compliance with the License. * You may obtain a copy of the License at * * http://www.apache.org/licenses/LICENSE-2.0 * * Unless required by applicable law or agreed to in writing, software * distributed under the License is distributed on an "AS IS" BASIS, * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. * See the License for the specific language governing permissions and * limitations under the License. */package org.apache.ibatis.type;import java.sql.Array;import java.sql.CallableStatement;import java.sql.PreparedStatement;import java.sql.ResultSet;import java.sql.SQLException;public class ArrayTypeHandler extends BaseTypeHandler<Object> { public ArrayTypeHandler() { super(); } @Override public void setNonNullParameter(PreparedStatement ps, int i, Object parameter, JdbcType jdbcType) throws SQLException { ps.setArray(i, (Array) parameter); } @Override public Object getNullableResult(ResultSet rs, String columnName) throws SQLException { Array array = rs.getArray(columnName); return array == null ? null : array.getArray(); } @Override public Object getNullableResult(ResultSet rs, int columnIndex) throws SQLException { Array array = rs.getArray(columnIndex); return array == null ? null : array.getArray(); } @Override public Object getNullableResult(CallableStatement cs, int columnIndex) throws SQLException { Array array = cs.getArray(columnIndex); return array == null ? null : array.getArray(); }}那它能否識別PostgreSQL的數組類型并將它自動轉換成Java數組類型呢？按官方的說法，既然這是默認的typeHandler，那么我們無需做任何配置mybatis會自動嘗試適配，所以直接寫測試代碼看看：
@Testpublic void testFunc1() { SqlSession session = sqlSessionFactory.openSession(); try { Map<String, Object> map = new HashMap<String, Object>(); map.put("ids", new Integer[] { 101, 102, 103 }); session.update("com.wl.entity.StudentMapper.testFuncUpdate2", map); session.commit(); } catch (Exception e) { e.printStackTrace(); } finally { session.close(); }}<update id="testFuncUpdate2" statementType="CALLABLE"> {call func_arr_update (#{ids,mode=IN})} </update>如上所示，參數傳的是一個Integer[]，直接運行一下junit看看測試結果：

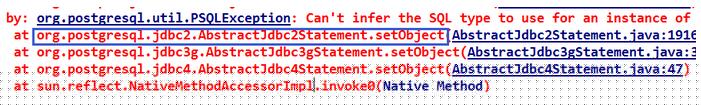

Can't infer the SQL type to use for an instance of [Ljava.lang.Integer;. Use setObject() with an explicit Types value to specify the type to use.
異常log如上所示，在調用AbstractJdbc2Statement類的setObject方法時拋出異常，那么再看看這個方法的源碼：
/* * This stores an Object into a parameter. */ public void setObject(int parameterIndex, Object x) throws SQLException { checkClosed(); if (x == null) setNull(parameterIndex, Types.OTHER); else if (x instanceof String) setString(parameterIndex, (String)x); else if (x instanceof BigDecimal) setBigDecimal(parameterIndex, (BigDecimal)x); else if (x instanceof Short) setShort(parameterIndex, ((Short)x).shortValue()); else if (x instanceof Integer) setInt(parameterIndex, ((Integer)x).intValue()); else if (x instanceof Long) setLong(parameterIndex, ((Long)x).longValue()); else if (x instanceof Float) setFloat(parameterIndex, ((Float)x).floatValue()); else if (x instanceof Double) setDouble(parameterIndex, ((Double)x).doubleValue()); else if (x instanceof byte[]) setBytes(parameterIndex, (byte[])x); else if (x instanceof java.sql.Date) setDate(parameterIndex, (java.sql.Date)x); else if (x instanceof Time) setTime(parameterIndex, (Time)x); else if (x instanceof Timestamp) setTimestamp(parameterIndex, (Timestamp)x); else if (x instanceof Boolean) setBoolean(parameterIndex, ((Boolean)x).booleanValue()); else if (x instanceof Byte) setByte(parameterIndex, ((Byte)x).byteValue()); else if (x instanceof Blob) setBlob(parameterIndex, (Blob)x); else if (x instanceof Clob) setClob(parameterIndex, (Clob)x); else if (x instanceof Array) setArray(parameterIndex, (Array)x); else if (x instanceof PGobject) setPGobject(parameterIndex, (PGobject)x); else if (x instanceof Character) setString(parameterIndex, ((Character)x).toString()); else if (x instanceof Map) setMap(parameterIndex, (Map)x); else { // Can't infer a type. throw new PSQLException(GT.tr("Can''t infer the SQL type to use for an instance of {0}. Use setObject() with an explicit Types value to specify the type to use.", x.getClass().getName()), PSQLState.INVALID_PARAMETER_TYPE); } }我們參數傳進去的Integer[]數組是一個Object數組，而 setObject(int parameterIndex, Object x)方法的第二個參數是Object，所以這里這里自然無法匹配也就報錯了，那么換成int[]可以嗎？在上面的else if語句中明顯沒有x instanceof int[]這行代碼，所以當然也不行，說到這里也就明確了mybatis默認提供的ArrayTypeHandler是無法自動識別PostgreSQL的數組類型，我們必須自定義一個參數為Object[]的ArrayTypeHandler才能實現匹配。
自定義ArrayTypeHandler
如題，先貼上代碼：
package com.wl.util;import java.sql.Array;import java.sql.CallableStatement;import java.sql.Connection;import java.sql.PreparedStatement;import java.sql.ResultSet;import java.sql.SQLException;import org.apache.ibatis.type.BaseTypeHandler;import org.apache.ibatis.type.JdbcType;import org.apache.ibatis.type.MappedJdbcTypes;import org.apache.ibatis.type.TypeException;@MappedJdbcTypes(JdbcType.ARRAY)public class ArrayTypeHandler extends BaseTypeHandler<Object[]> { private static final String TYPE_NAME_VARCHAR = "varchar"; private static final String TYPE_NAME_INTEGER = "integer"; private static final String TYPE_NAME_BOOLEAN = "boolean"; private static final String TYPE_NAME_NUMERIC = "numeric"; @Override public void setNonNullParameter(PreparedStatement ps, int i, Object[] parameter, JdbcType jdbcType) throws SQLException { String typeName = null; if (parameter instanceof Integer[]) { typeName = TYPE_NAME_INTEGER; } else if (parameter instanceof String[]) { typeName = TYPE_NAME_VARCHAR; } else if (parameter instanceof Boolean[]) { typeName = TYPE_NAME_BOOLEAN; } else if (parameter instanceof Double[]) { typeName = TYPE_NAME_NUMERIC; } if (typeName == null) { throw new TypeException( "ArrayTypeHandler parameter typeName error, your type is " + parameter.getClass().getName()); } Connection conn = ps.getConnection(); Array array = conn.createArrayOf(typeName, parameter); ps.setArray(i, array); } @Override public Object[] getNullableResult(ResultSet rs, String columnName) throws SQLException { return getArray(rs.getArray(columnName)); } @Override public Object[] getNullableResult(ResultSet rs, int columnIndex) throws SQLException { return getArray(rs.getArray(columnIndex)); } @Override public Object[] getNullableResult(CallableStatement cs, int columnIndex) throws SQLException { return getArray(cs.getArray(columnIndex)); } private Object[] getArray(Array array) { if (array == null) { return null; } try { return (Object[]) array.getArray(); } catch (Exception e) { } return null; }}如上所示，我們指定了參數類型為Object[]，這樣就可以接收Integer[]類型的參數了，關鍵是44~46行，postgresql的驅動類AbstractJdbc4Connection實現了Connect接口的createArrayOf方法，源碼如下：
public Array createArrayOf(String typeName, Object[] elements) throws SQLException { checkClosed(); int oid = getTypeInfo().getPGArrayType(typeName); if (oid == Oid.UNSPECIFIED) throw new PSQLException(GT.tr("Unable to find server array type for provided name {0}.", typeName), PSQLState.INVALID_NAME); char delim = getTypeInfo().getArrayDelimiter(oid); StringBuffer sb = new StringBuffer(); appendArray(sb, elements, delim); // This will not work once we have a JDBC 5, // but it'll do for now. return new Jdbc4Array(this, oid, sb.toString()); }這樣通過自定義的ArrayTypeHandler就可以在Mybatis中方便的操作數組類型數據了，最后再測試一下，測試類代碼不變，僅需在調用存儲過程時指定mapper文件的typeHandler即可：

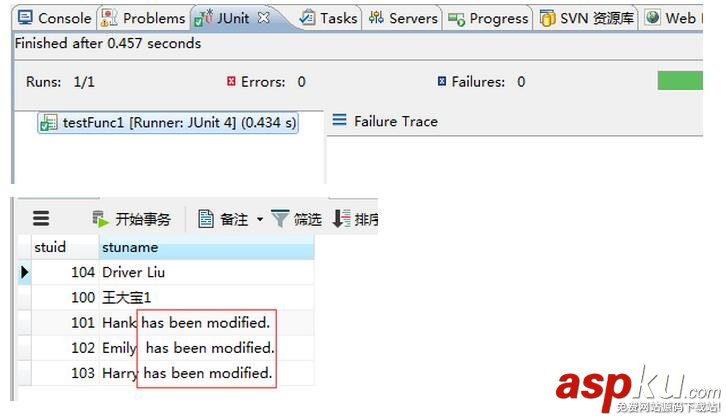

@Testpublic void testFunc1() { SqlSession session = sqlSessionFactory.openSession(); try { Map<String, Object> map = new HashMap<String, Object>(); map.put("ids", new Integer[] { 101, 102, 103 }); session.update("com.wl.entity.StudentMapper.testFuncUpdate2", map); session.commit(); } catch (Exception e) { e.printStackTrace(); } finally { session.close(); }}<update id="testFuncUpdate2" statementType="CALLABLE"> {call func_arr_update (#{ids,mode=IN,typeHandler=com.wl.util.ArrayTypeHandler})} </update>再次運行junit看一下測試結果：
如上所示，此時已經可以成功調用參數為Integer[]數組的pg自定義函數了。
總結
簡單記錄一下在mybatis中調用postgresql自定義函數時傳遞數組參數的解決方案，希望對遇到同樣問題的朋友有所幫助，The End。
