1. 簡要

雙網卡綁定技術在centos7中使用了teaming技術，而在rhel6/centos7中使用的是bonding技術，在centos7中雙網卡綁定既能使用teaming也可以使用bonding，這里推薦使用teaming技術，方便與查看和監控。

2. 原理

這里介紹兩種最常見的雙網卡綁定模式：

（1） roundrobin - 輪詢模式

所有鏈路處于負載均衡狀態，這種模式的特點增加了帶寬，同時支持容錯能力。

（2） activebackup - 主備模式

一個網卡處于活動狀態，另一個處于備份狀態，所有流量都在主鏈路上處理，當活動網卡down掉時，啟用備份網卡。

3. 基礎環境

系統：centos7

在centos7中，關閉虛擬機添加網卡，再開啟虛擬機，系統是不會自動生成網卡的配置文件：

centos7,雙網卡綁定,rhel7,centos

在centos7中要生成網卡配置文件的方法很簡單，使用如下命令：

  # 查看物理網卡信息[root@localhost ~]# nmcli devDEVICE    TYPE   STATE   CONNECTION     eno16777736 ethernet connected eno16777736    eno33554984 ethernet connected Wired connection 1 eno50332208 ethernet connected Wired connection 2 lo      loopback unmanaged --

上面的信息可以看到，一共有四張網卡，其中lo是本地回環網卡，另外三張為物理網卡。

  # 查看網卡連接信息[root@localhost ~]# nmcli con shNAME        UUID                 TYPE      DEVICE   Wired connection 2 9a1314bf-d273-406a-930a-dc4160dee4ec 802-3-ethernet eno50332208 Wired connection 1 47eef4a3-7fa4-4a73-83ef-1485bda9b950 802-3-ethernet eno33554984 eno16777736     51d00668-2cf5-41da-ad8d-5019d62e98ad 802-3-ethernet eno16777736

上面的信息可以查看到一共有3個連接，其中兩個有線連接，表示沒有設置過的網卡連接，還有一個enoxx連接。接下來要修改兩個有線連接的命名方法，并生成網卡配置文件：

  # 首先，刪除兩個無用的有線連接[root@localhost ~]# nmcli con del 9a1314bf-d273-406a-930a-dc4160dee4ecConnection 'Wired connection 2' (9a1314bf-d273-406a-930a-dc4160dee4ec) successfully deleted.[root@localhost ~]# nmcli con del 47eef4a3-7fa4-4a73-83ef-1485bda9b950Connection 'Wired connection 1' (47eef4a3-7fa4-4a73-83ef-1485bda9b950) successfully deleted.

# 再次創建新的連接并生成配置文件[root@localhost ~]# nmcli conn add type ethernet con-name eno50332208 ifname eno50332208 Connection 'eno50332208' (eea2a115-63f8-4f33-be84-12559f02542c) successfully added.[root@localhost ~]# nmcli conn add type ethernet con-name eno33554984 ifname eno33554984Connection 'eno33554984' (32d2389e-4e82-4419-9d18-5aff8f0be003) successfully added.

 # 最后，查看下[root@localhost ~]# nmcli con shNAME     UUID                 TYPE      DEVICE   eno16777736 51d00668-2cf5-41da-ad8d-5019d62e98ad 802-3-ethernet eno16777736 eno33554984 32d2389e-4e82-4419-9d18-5aff8f0be003 802-3-ethernet eno33554984 eno50332208 eea2a115-63f8-4f33-be84-12559f02542c 802-3-ethernet eno50332208[root@localhost ~]# ll /etc/sysconfig/network-scripts/ifcfg-eno*-rw-r--r--. 1 root root 394 Nov 26 05:59 /etc/sysconfig/network-scripts/ifcfg-eno16777736-rw-r--r--. 1 root root 288 Dec 26 08:44 /etc/sysconfig/network-scripts/ifcfg-eno33554984-rw-r--r--. 1 root root 288 Dec 26 08:44 /etc/sysconfig/network-scripts/ifcfg-eno50332208

網絡連接和配置文件都成功生成了。接下來通過eno33554984 和 eno50332208 使用teaming模式進行雙網卡綁定

4. roundrobin模式：

roundrobin模式也稱為輪詢模式，它基于每一個包，當某一臺服務器的兩張網卡設置為roundrobin模式teaming，此時服務器發出的數據包，就會在兩個物理網卡上進行輪詢，即第一個數據包走一張網卡，第二個數據包走第二張網卡，依次輪詢。

注意：

（1）roundrobin具有容錯性，當一張網卡down掉，數據包依然發送成功。

（2）在使用roundrobin模式必須要在交換機上做以太通道，不然會出現網絡無法連通。

實際操作：

  # 使用nmcli命令操作，創建team接口team0，同時設置teaming模式為roundrobin[root@localhost ~]# nmcli con add type team con-name team0 ifname team0 config '{"runner":{"name": "roundrobin"}}'Connection 'team0' (9dc48bd6-54b9-48db-b7dd-ecf34ae9196f) successfully added.

  # 給接口team0設置ip地址[root@localhost ~]# nmcli con modify team0 ipv4.address '10.0.0.2/24' ipv4.gateway '10.0.0.1'   # 設置為手動模式，取消DHCP[root@localhost ~]# nmcli con modify team0 ipv4.method manual

  # 將兩張物理網卡加入到team中[root@localhost ~]# nmcli con add type team-slave con-name team0-port1 ifname eno33554984 master team0Connection 'team0-port1' (22d3640e-f5c8-499c-b0dd-913c8970d800) successfully added.[root@localhost ~]# nmcli con add type team-slave con-name team0-port2 ifname eno50332208 master team0Connection 'team0-port2' (12660d2a-0e1f-41e6-96b2-53de4fc6b78c) successfully added.[root@localhost ~]# nmcli con shNAME     UUID                 TYPE      DEVICE   team0-port2 12660d2a-0e1f-41e6-96b2-53de4fc6b78c 802-3-ethernet --     eno16777736 51d00668-2cf5-41da-ad8d-5019d62e98ad 802-3-ethernet eno16777736 team0-port1 22d3640e-f5c8-499c-b0dd-913c8970d800 802-3-ethernet --     team0    9dc48bd6-54b9-48db-b7dd-ecf34ae9196f team      team0    eno33554984 32d2389e-4e82-4419-9d18-5aff8f0be003 802-3-ethernet eno33554984 eno50332208 eea2a115-63f8-4f33-be84-12559f02542c 802-3-ethernet eno50332208

  # 查看team0的狀態[root@localhost ~]# teamdctl team0 stsetup: runner: roundrobin

4.1 roundrobin問題排查

第一次查看出現的是這樣的結果，檢查下配置：

  # 通過直接查看網卡發現team0并沒有啟動[root@localhost ~]# ip a | grep team05: team0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc noqueue state DOWN  # 使用ifup 啟動team0并沒有成功，繼續排查[root@localhost ~]# ifup team0[root@localhost ~]# ip a | grep team05: team0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc noqueue state DOWN

直接sysetmctl restart network 也沒有成功。

  # 發現team0-port1 team0-port2沒有添加成功物理網卡，怎么回事呢？[root@localhost ~]# nmcli con shNAME     UUID                 TYPE      DEVICE   team0-port2 ec96c1e1-d268-4ba1-a2f9-0133a9f02655 802-3-ethernet --     eno16777736 51d00668-2cf5-41da-ad8d-5019d62e98ad 802-3-ethernet eno16777736 team0-port1 22d3640e-f5c8-499c-b0dd-913c8970d800 802-3-ethernet --     team0    9dc48bd6-54b9-48db-b7dd-ecf34ae9196f team      team0    eno33554984 32d2389e-4e82-4419-9d18-5aff8f0be003 802-3-ethernet eno33554984 eno50332208 eea2a115-63f8-4f33-be84-12559f02542c 802-3-ethernet eno50332208

  # 刪除掉[root@localhost ~]# nmcli con del team0-port1Connection 'team0-port1' (22d3640e-f5c8-499c-b0dd-913c8970d800) successfully deleted.[root@localhost ~]# nmcli con del team0-port2Connection 'team0-port2' (ec96c1e1-d268-4ba1-a2f9-0133a9f02655) successfully deleted.  # 刪除兩張物理網卡的連接[root@localhost ~]# nmcli con shNAME     UUID                 TYPE      DEVICE   eno16777736 51d00668-2cf5-41da-ad8d-5019d62e98ad 802-3-ethernet eno16777736 team0    9dc48bd6-54b9-48db-b7dd-ecf34ae9196f team      team0    eno33554984 32d2389e-4e82-4419-9d18-5aff8f0be003 802-3-ethernet eno33554984 eno50332208 eea2a115-63f8-4f33-be84-12559f02542c 802-3-ethernet eno50332208 [root@localhost ~]# nmcli con del eno33554984 eno50332208Connection 'eno33554984' (32d2389e-4e82-4419-9d18-5aff8f0be003) successfully deleted.Connection 'eno50332208' (eea2a115-63f8-4f33-be84-12559f02542c) successfully deleted.  # 刪除成功[root@localhost ~]# nmcli con shNAME     UUID                 TYPE      DEVICE   eno16777736 51d00668-2cf5-41da-ad8d-5019d62e98ad 802-3-ethernet eno16777736 team0    9dc48bd6-54b9-48db-b7dd-ecf34ae9196f team      team0

  # 再次將兩張物理網卡添加到team[root@localhost ~]# nmcli con add type team-slave con-name team0-port1 ifname eno33554984 master team0Connection 'team0-port1' (0331ea43-95c0-4106-b388-8484d4c3940d) successfully added.[root@localhost ~]# nmcli con add type team-slave con-name team0-port2 ifname eno50332208 master team0Connection 'team0-port2' (880f2146-fe93-42dd-8d28-7d0dd50b4011) successfully added.[root@localhost ~]# nmcli con shNAME     UUID                 TYPE      DEVICE   team0-port1 0331ea43-95c0-4106-b388-8484d4c3940d 802-3-ethernet eno33554984 eno16777736 51d00668-2cf5-41da-ad8d-5019d62e98ad 802-3-ethernet eno16777736 team0    9dc48bd6-54b9-48db-b7dd-ecf34ae9196f team      team0    team0-port2 880f2146-fe93-42dd-8d28-7d0dd50b4011 802-3-ethernet eno50332208

現在成功將兩張物理網卡綁定到了team組中

  # 現在查看team0的狀態就出現了，模式是：roundrobin[root@localhost ~]# teamdctl team0 st setup: runner: roundrobinports: eno33554984  link watches:   link summary: up   instance[link_watch_0]:    name: ethtool    link: up    down count: 0 eno50332208  link watches:   link summary: up   instance[link_watch_0]:    name: ethtool    link: up    down count: 0

這樣，team模式的roundrobin搭建成功。

總結：

在做鏈路聚合的時候，所要使用到的物理網卡不能獨立存在連接，也就是在nmcli con sh查看時，不能獨立存在，否則就無法綁定到team模式中。

4.2 測試

因為這里是虛擬機環境，只能通過down掉網卡進行查看。

[root@localhost ~]# teamdctl team0 stsetup: runner: roundrobinports: eno33554984  link watches:   link summary: up   instance[link_watch_0]:    name: ethtool    link: up    down count: 0 eno50332208  link watches:   link summary: up   instance[link_watch_0]:    name: ethtool    link: up    down count: 0

兩張網卡同時在線，現在down掉其中一張網卡，

[root@localhost ~]# nmcli con del team0-port1Connection 'team0-port1' (0331ea43-95c0-4106-b388-8484d4c3940d) successfully deleted.[root@localhost ~]# nmcli con shNAME     UUID                 TYPE      DEVICE   eno16777736 51d00668-2cf5-41da-ad8d-5019d62e98ad 802-3-ethernet eno16777736 team0    9dc48bd6-54b9-48db-b7dd-ecf34ae9196f team      team0    team0-port2 880f2146-fe93-42dd-8d28-7d0dd50b4011 802-3-ethernet eno50332208[root@localhost ~]# teamdctl team0 stsetup: runner: roundrobinports: eno50332208  link watches:   link summary: up   instance[link_watch_0]:    name: ethtool    link: up    down count: 0

這樣就發現eno33554984網卡已經down掉了。

[root@localhost ~]# nmcli con add type team-slave con-name team0-port1 ifname eno33554984 master team0Connection 'team0-port1' (59acd6bf-affc-4994-a050-83c45816859a) successfully added.[root@localhost ~]# [root@localhost ~]# teamdctl team0 stsetup: runner: roundrobinports: eno33554984  link watches:   link summary: up   instance[link_watch_0]:    name: ethtool    link: up    down count: 0 eno50332208  link watches:   link summary: up   instance[link_watch_0]:    name: ethtool    link: up    down count: 0

虛擬機環境就這樣測試了吧，至于生產環境就直接拔網線，ping測試。

資料有說linux下roundrobin具有容錯的效果，為了測試是否有容錯的效果，虛擬機做了下更改來驗證：

centos7,雙網卡綁定,rhel7,centos

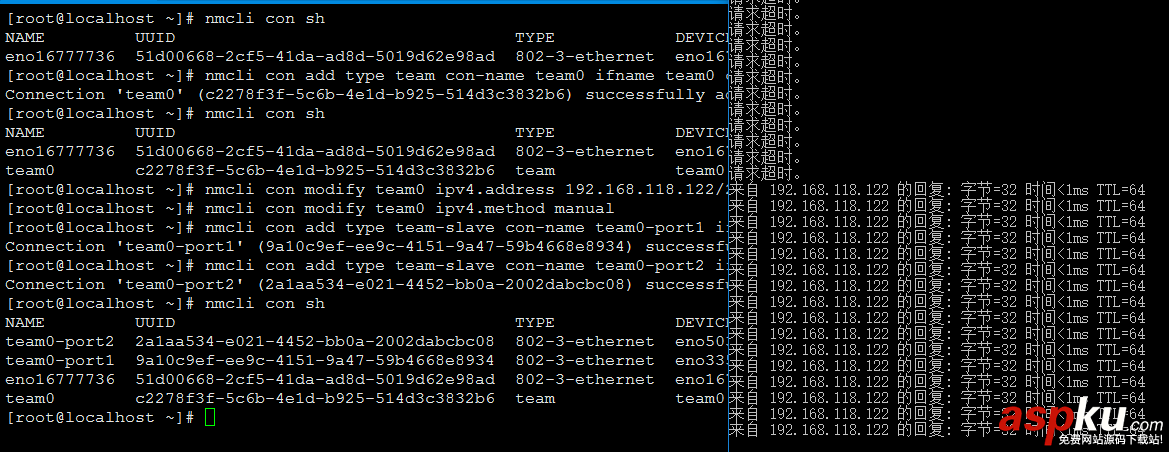

這一次網卡全部改成橋接模式，為了更好的測試是否具有容錯性。

centos7,雙網卡綁定,rhel7,centos

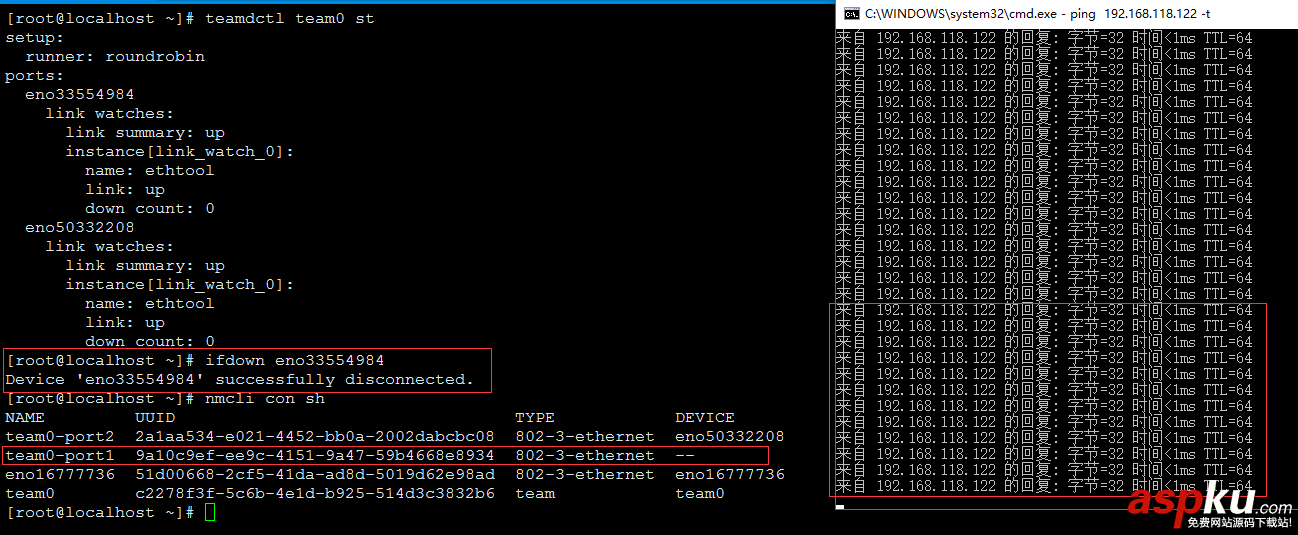

roundrobin已經配置完畢。接下來我們down掉一張網卡檢查是否具有容錯性。

centos7,雙網卡綁定,rhel7,centos

通過虛擬機測試，容錯性是存在的。

5. 雙網卡綁定activebackup的實現

[root@localhost ~]# nmcli con sh NAME     UUID                 TYPE      DEVICE   team0-port2 2a1aa534-e021-4452-bb0a-2002dabcbc08 802-3-ethernet eno50332208 team0-port1 9a10c9ef-ee9c-4151-9a47-59b4668e8934 802-3-ethernet --     eno16777736 51d00668-2cf5-41da-ad8d-5019d62e98ad 802-3-ethernet eno16777736 team0    c2278f3f-5c6b-4e1d-b925-514d3c3832b6 team      team0    [root@localhost ~]# nmcli con del team0 team0-port1 team0-port2Connection 'team0' (c2278f3f-5c6b-4e1d-b925-514d3c3832b6) successfully deleted.Connection 'team0-port1' (9a10c9ef-ee9c-4151-9a47-59b4668e8934) successfully deleted.Connection 'team0-port2' (2a1aa534-e021-4452-bb0a-2002dabcbc08) successfully deleted.[root@localhost ~]# nmcli con sh NAME     UUID                 TYPE      DEVICE   eno16777736 51d00668-2cf5-41da-ad8d-5019d62e98ad 802-3-ethernet eno16777736 # 以上操作就刪除了roundrobin模式，恢復到初始狀態。

# 添加邏輯網卡team0，并啟用activebackup模式[root@localhost ~]# nmcli con add type team con-name team0 ifname team0 config '{"runner":{"name":"activebackup"}}'Connection 'team0' (f0794e59-419d-4c2a-96b9-464610b6321a) successfully added.# 綁定ip[root@localhost ~]# nmcli con modify team0 ipv4.address 192.168.118.122/24 ipv4.gateway 192.168.118.1[root@localhost ~]# nmcli con modify team0 ipv4.method manual# 添加物理網卡到activebackup模式[root@localhost ~]# nmcli con add type team-slave con-name team0-port1 ifname eno33554984 master team0Connection 'team0-port1' (52656904-6e85-4a04-98b4-2b19773fa290) successfully added.[root@localhost ~]# nmcli con add type team-slave con-name team0-port2 ifname eno50332208 master team0Connection 'team0-port2' (44d96e3a-014a-481f-9122-4ca2d3be9f7a) successfully added.

[root@localhost ~]# teamdctl team0 stsetup: runner: activebackupports: eno33554984  link watches:   link summary: up   instance[link_watch_0]:    name: ethtool    link: up    down count: 0 eno50332208  link watches:   link summary: up   instance[link_watch_0]:    name: ethtool    link: up    down count: 0runner: active port: eno33554984

成功，處于活動中的網卡為 eno33554984

5.1 測試

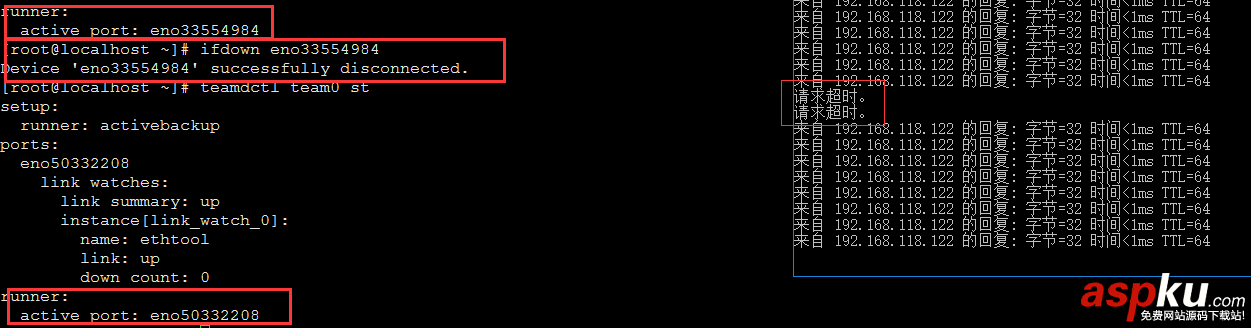

通過down掉活動網卡測試網絡是否仍然處于連通狀態

centos7,雙網卡綁定,rhel7,centos
