載均衡有很多種方法，有硬件負載均衡，軟件負載均衡，還可以從域名解析下手。

不過，今天只講軟件負載均衡。

軟件負載均衡一般分兩種，從網絡協議來講（tcp/ip），主要集中在第四層和第七層進行負載均衡。

第四層就是基于IP進行負載均衡。后面還有一篇文章講這個。

第七層就是應用層。比如各種的WEB服務器。今天就講講IIS的負載均衡。

第七層的Web負載均衡，很多web服務器都支持，比如IIS，Nginx，apache等?，F在主要講一下windosw下IIS如何使用負載均衡

IIS使用ARR反向代理，實現負載均衡

什么是正向代理？

代理服務器大家可能聽說過，比如我們說的“科學上網”。就是使用代理服務器，請求經過代理服務器轉到目的服務器。這是一個正向代理。用戶知道自己使用代理，并且充許用戶隱藏客戶端自身。

什么是反向代理？

請求同樣經過代理服務器轉到目的服務器，目的服務器返回給代理服器，代理返回給客戶端。不同的時候，客戶并不知道，訪問的是一個代理服務器。客戶認為他在訪問目的服務器。

兩者的區別基本在于，正向代理是發生在客戶端。反向代理是發生在服務端。

首先，我們先安裝一個Web平臺安裝程序

打開web平臺安裝程序，搜索arr

windows,第七層,負載均衡,IIS,ARR

寫WebApi程序

[Route("api/[controller]")]public class HomeController : Controller{ // GET: api/<controller> [HttpGet,Route("GetUserChat")] public async Task<ActionResult> GetUserChat() { var collection = new MongoHelper().GetCollection<OAChat>("OAChat"); var chatItems =await collection.Find(n => n.ChatType == 2).Limit(5).ToListAsync(); return ApiJsonFormat.GetJsonResult(chatItems); }}

返回結果

{"ResultCode":1000,"Message":"成功","DetailError":null,"Data":[{"Id":"595225a5bbccc61ff88e89a7","ChatName":"testttt","ChatType":2,"CreaterUserId":76,"Members":[],"CreateTime":"2017-06-27 17:30:13","LastChatTime":"2017-11-10 17:43:17","LastChatText":"[定位]","IsDisbanded":false},{"Id":"5952445ebbccc71ff8adf671","ChatName":"測試2","ChatType":2,"CreaterUserId":13,"Members":[],"CreateTime":"2017-06-27 19:41:18","LastChatTime":"2017-06-27 19:48:47","LastChatText":"行","IsDisbanded":true},{"Id":"5952463dbbccc71ff8adf67d","ChatName":"巡視頻么么噠噠","ChatType":2,"CreaterUserId":13,"Members":[],"CreateTime":"2017-06-27 19:49:17","LastChatTime":"2017-12-20 19:47:17","LastChatText":"[定位]","IsDisbanded":false},{"Id":"59524c0ebbccc71ff8adf6ae","ChatName":"rrrffff","ChatType":2,"CreaterUserId":13,"Members":[],"CreateTime":"2017-06-27 20:14:06","LastChatTime":"2017-06-27 20:34:54","LastChatText":"6565","IsDisbanded":false},{"Id":"59531cdfbbccc414e8f6769f","ChatName":"都紛紛fee俄方熱熱","ChatType":2,"CreaterUserId":76,"Members":[],"CreateTime":"2017-06-28 11:05:03","LastChatTime":"2017-06-28 11:05:13","LastChatText":"123","IsDisbanded":true},{"Id":"59531de5bbccc414e8f676a1","ChatName":"天賦過人托管人","ChatType":2,"CreaterUserId":76,"Members":[],"CreateTime":"2017-06-28 11:09:25","LastChatTime":"2017-06-28 11:09:33","LastChatText":"呃呃呃","IsDisbanded":true},{"Id":"59531e40bbccc414e8f676a3","ChatName":"熱熱","ChatType":2,"CreaterUserId":76,"Members":[],"CreateTime":"2017-06-28 11:10:56","LastChatTime":"2017-06-28 17:58:41","LastChatText":"333","IsDisbanded":false},{"Id":"59532140bbccc414e8f676a6","ChatName":"會厭結核有機會好好","ChatType":2,"CreaterUserId":76,"Members":[],"CreateTime":"2017-06-28 11:23:44","LastChatTime":"2017-06-28 11:24:40","LastChatText":"eee","IsDisbanded":true},{"Id":"595321d3bbccc414e8f676a8","ChatName":"656565656","ChatType":2,"CreaterUserId":76,"Members":[],"CreateTime":"2017-06-28 11:26:11","LastChatTime":"2017-06-28 18:50:08","LastChatText":"ggg","IsDisbanded":false},{"Id":"5954d0eebbccc40fecbea435","ChatName":"r","ChatType":2,"CreaterUserId":76,"Members":[],"CreateTime":"2017-06-29 18:05:34","LastChatTime":null,"LastChatText":null,"IsDisbanded":false}]}

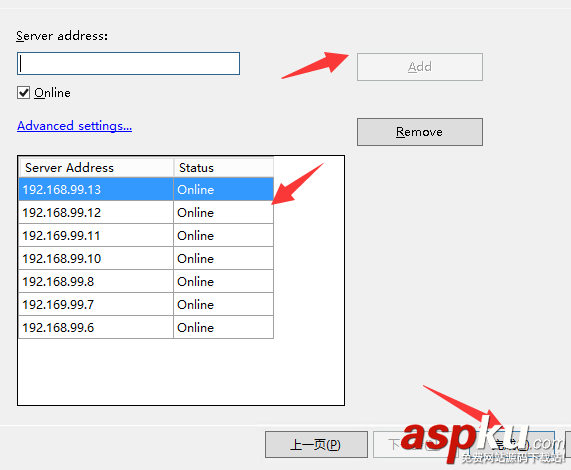

//設置ARR

192.168.99.5 //代理服務器192.168.99.6 //目的服務器192.168.99.7 //目的服務器192.168.99.8 //目的服務器192.168.99.10 //目的服務器192.168.99.11 //目的服務器192.168.99.12 //目的服務器192.168.99.13 //目的服務器

首先給服務器安裝net core 運行環境

DotNetCore.2.0.5-WindowsHosting 安裝包內置SDK和WindowsHosting，直接安裝這個，安裝成功之后，要重啟服務器才能生效。然后部署Web就可以訪問了

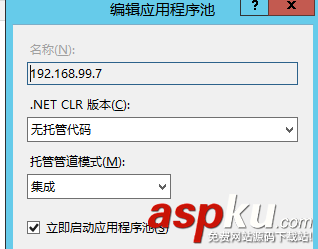

選擇無托管代碼
