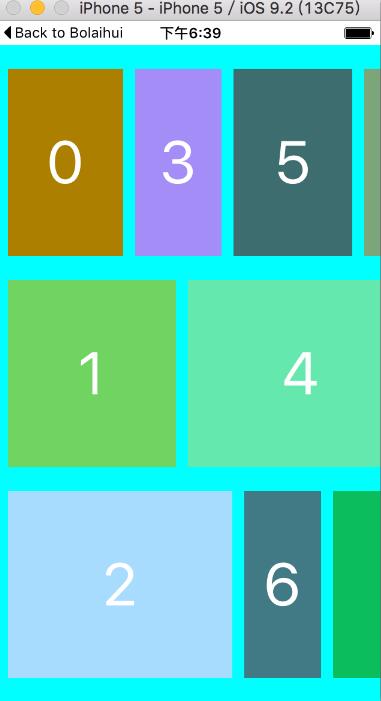

在網上找了許久，一直沒有發現有提供橫向瀑布流效果的。在項目中用到了我就在垂直瀑布流的基礎上，進行了修改，做出了橫向瀑布流的效果。同時也對一些UICollectionView的屬性進行簡單的注釋，方便以后查閱。
1、首先要寫一個繼承與NSObject的布局類，記錄每一行（列）目前的寬度（高度）。再添加一個新的cell的時候進行判斷比較，添加到最短的那一行或一列上。
2、橫向的布局類入下，垂直的話就是講對應的X Y軸數據進行調整即可。
WaterfallFlowLayout為布局類，繼承與NSObject。.h文件入下
#import <UIKit/UIKit.h>// 類的前置聲明@class WaterfallFlowLayout;@protocol WaterfallFlowLayoutDelegate <NSObject>// 動態獲取 item 寬度- (CGFloat) WaterfallFlowLayout:(WaterfallFlowLayout *) layout widthForItemAtIndexPath:(NSIndexPath *) indexPath;@end@interface WaterfallFlowLayout : UICollectionViewLayout@property (nonatomic,assign) id <WaterfallFlowLayoutDelegate> delegate;@property (nonatomic) NSInteger numberOfColumns;@property (nonatomic) CGFloat minimumLineSpacing;@property (nonatomic) CGFloat minimumInteritemSpacing;@property (nonatomic) UIEdgeInsets sectionInset;@end
WaterfallFlowLayout為布局類，繼承與NSObject。.m文件入下
#import "WaterfallFlowLayout.h"@interface WaterfallFlowLayout (){ // 用于記錄每一列布局到的寬度 NSMutableArray * _widthOfColumns; // 用于保存所有item的屬性 (frame) NSMutableArray * _itemsAttributes;}@end@implementation WaterfallFlowLayout- (void) setNumberOfColumns:(NSInteger)numberOfColumns { if (_numberOfColumns != numberOfColumns) { _numberOfColumns = numberOfColumns; // 讓原有布局失效，需要重新布局 [self invalidateLayout]; }}- (void)setMinimumLineSpacing:(CGFloat)minimumLineSpacing { if (_minimumLineSpacing != minimumLineSpacing) { _minimumLineSpacing = minimumLineSpacing; [self invalidateLayout]; }}- (void)setMinimumInteritemSpacing:(CGFloat)minimumInteritemSpacing { if (_minimumInteritemSpacing != minimumInteritemSpacing) { _minimumInteritemSpacing = minimumInteritemSpacing; [self invalidateLayout]; }}- (void)setSectionInset:(UIEdgeInsets)sectionInset { if (!UIEdgeInsetsEqualToEdgeInsets(_sectionInset, sectionInset)) { _sectionInset = sectionInset; [self invalidateLayout]; }}//重寫方法 1: 準備布局-(void)prepareLayout { [super prepareLayout]; // 真正的布局在這里完成 if (_itemsAttributes) { [_itemsAttributes removeAllObjects]; }else { _itemsAttributes = [[NSMutableArray alloc] init]; } if (_widthOfColumns) { [_widthOfColumns removeAllObjects]; }else { _widthOfColumns = [[NSMutableArray alloc] init]; } for (NSInteger i = 0; i < self.numberOfColumns; i++) { // 初始化每一列的寬度(默認為上邊距)// _heightOfColumns[i] = @(self.sectionInset.top); [_widthOfColumns addObject:@(self.sectionInset.left)]; } // item的總數 NSInteger count = [self.collectionView numberOfItemsInSection:0];// CGFloat itemWidth = (self.collectionView.frame.size.width - self.sectionInset.left - self.sectionInset.right - (_numberOfColumns-1) * _minimumInteritemSpacing )/_numberOfColumns; // 總的高度 (集合視圖的寬度) CGFloat totalHeight = self.collectionView.frame.size.height; // 有效的高度 (出去間隔及邊界) CGFloat validHeight = totalHeight - self.sectionInset.top - self.self.sectionInset.bottom - (self.numberOfColumns-1) * self.minimumInteritemSpacing; // 每一個item的高度 CGFloat itemHeight = validHeight/self.numberOfColumns; // 設置item的默認寬度 CGFloat itemWidth = itemHeight; for (NSInteger i = 0; i<count; i++) { // 最短列的下標 NSInteger index = [self indexOfShortestColumn]; CGFloat originY = self.sectionInset.top + index * (itemHeight +self.minimumInteritemSpacing); CGFloat originX = [_widthOfColumns[index] floatValue]; // 構造 indexPath NSIndexPath * indexPath = [NSIndexPath indexPathForItem:i inSection:0]; // 動態的獲取寬度 if ([self.delegate respondsToSelector:@selector(WaterfallFlowLayout:widthForItemAtIndexPath:)]) { itemWidth = [self.delegate WaterfallFlowLayout:self widthForItemAtIndexPath:indexPath]; } UICollectionViewLayoutAttributes * attr = [UICollectionViewLayoutAttributes layoutAttributesForCellWithIndexPath:indexPath]; attr.frame = CGRectMake(originX, originY, itemWidth, itemHeight); // 保存 item 的屬性 到數組中 [_itemsAttributes addObject:attr]; // 更新布局到的一列(最短列) 的高度 _widthOfColumns[index] = @(originX + itemWidth + self.minimumLineSpacing); } // 刷新顯示 [self.collectionView reloadData];}//重寫方法 2: 返回指定區域的item的屬性(frame)- (NSArray<UICollectionViewLayoutAttributes *> *)layoutAttributesForElementsInRect:(CGRect)rect { NSMutableArray * array = [NSMutableArray array]; for (UICollectionViewLayoutAttributes * attr in _itemsAttributes) { // 判斷兩個矩形是否有交集 if (CGRectIntersectsRect(attr.frame, rect)) { [array addObject:attr]; } } return array;}//重寫方法 3: 返回內容的尺寸-(CGSize)collectionViewContentSize { CGFloat height = self.collectionView.frame.size.height; NSInteger index = [self indexOfLongestColumn]; CGFloat width = [_widthOfColumns[index] floatValue] + self.sectionInset.right - self.minimumLineSpacing; return CGSizeMake(width, height);}- (NSInteger) indexOfLongestColumn { NSInteger index = 0; for (NSInteger i = 0; i<_numberOfColumns; i++) { if ([_widthOfColumns[i] floatValue] > [_widthOfColumns[index] floatValue]) { index = i; } } return index;}- (NSInteger) indexOfShortestColumn { NSInteger index = 0; for (NSInteger i = 0; i<_numberOfColumns; i++) { if ([_widthOfColumns[i] floatValue] < [_widthOfColumns[index] floatValue]) { index = i; } } return index;}@end3、上邊的這個布局類可以直接復制粘貼下來。然后就是創建你的UICollectionView
在collectionView的cell中可以直接創建imageView或者是label添加到cell上，用來顯示數據。
collectionView默認section縮進左右是0
調節橫向cell間距
layout.minimumLineSpacing = 10;
調節縱向cell間距
layout.minimumInteritemSpacing = 20;
調節瀑布流顯示的行數，當然了你的collectionView的高（寬）足夠顯示幾行（列）就會自動顯示多上行（列）；
layout.numberOfColumns = 3;
#import "RootViewController.h"#import "WaterfallFlowLayout.h"@interface RootViewController () <UICollectionViewDataSource,UICollectionViewDelegateFlowLayout,WaterfallFlowLayoutDelegate>{ UICollectionView * _collectionView;}@end@implementation RootViewController- (void)dealloc { [_collectionView release]; [super dealloc];}- (void)viewDidLoad { [super viewDidLoad]; // 創建集合視圖 [self createCollectionView];}- (UICollectionViewLayout *)createLayout {#if 1 WaterfallFlowLayout * layout = [[WaterfallFlowLayout alloc] init]; layout.sectionInset = UIEdgeInsetsMake(20, 20, 20, 20); layout.minimumLineSpacing = 10; layout.minimumInteritemSpacing = 20; layout.numberOfColumns = 3; layout.delegate = self; [self performSelector:@selector(changeLayout:) withObject:layout afterDelay:3];#else UICollectionViewFlowLayout * layout = [[UICollectionViewFlowLayout alloc] init]; layout.minimumLineSpacing = 10; layout.itemSize = CGSizeMake(150, 100); layout.sectionInset = UIEdgeInsetsMake(10, 10, 10, 10);#endif return [layout autorelease];}- (void)changeLayout:(WaterfallFlowLayout *)layout { layout.numberOfColumns = 3;}- (void)createCollectionView { CGRect frame = CGRectMake(0, 20, VIEW_WIDTH, VIEW_HEIGHT-20); _collectionView = [[UICollectionView alloc] initWithFrame:frame collectionViewLayout:[self createLayout]]; _collectionView.backgroundColor = [UIColor cyanColor]; // 設置代理 _collectionView.delegate = self; _collectionView.dataSource = self; // 注冊cell 類型 及 復用標識 [_collectionView registerClass:[UICollectionViewCell class] forCellWithReuseIdentifier:@"cellId"]; [self.view addSubview:_collectionView];}#pragma mark - UICollectionViewDataSource- (NSInteger)collectionView:(UICollectionView *)collectionView numberOfItemsInSection:(NSInteger)section { return 102;}- (UICollectionViewCell *)collectionView:(UICollectionView *)collectionView cellForItemAtIndexPath:(NSIndexPath *)indexPath { UICollectionViewCell * cell = [collectionView dequeueReusableCellWithReuseIdentifier:@"cellId" forIndexPath:indexPath]; UILabel * label = nil; NSArray * array = cell.contentView.subviews; if (array.count) { label = array[0]; }else { label = [[UILabel alloc] init];// label.frame = cell.bounds; label.textAlignment = NSTextAlignmentCenter; label.font = [UIFont systemFontOfSize:50]; [cell.contentView addSubview:label]; [label release]; } label.frame = cell.bounds; label.text = [NSString stringWithFormat:@"%ld",indexPath.item]; label.textColor = [UIColor whiteColor]; cell.backgroundColor = RandomColor; return cell;}- (CGSize) collectionView:(UICollectionView *)collectionView layout:(UICollectionViewLayout *)collectionViewLayout sizeForItemAtIndexPath:(NSIndexPath *)indexPath { return CGSizeMake( arc4random()%100+200, 110);}-(CGFloat) WaterfallFlowLayout:(WaterfallFlowLayout *)layout widthForItemAtIndexPath:(NSIndexPath *)indexPath{ return arc4random()%150+50;}-(void)collectionView:(UICollectionView *)collectionView didSelectItemAtIndexPath:(NSIndexPath *)indexPath{ NSLog(@"點擊了第 %ld 組，第 %ld 行",indexPath.section,indexPath.row);}- (void)didReceiveMemoryWarning { [super didReceiveMemoryWarning];}@end實現的效果如下
以上就是本文的全部內容，希望對大家的學習有所幫助，也希望大家多多支持VEVB武林網。
