其實寫這個socket一開始我是拒絕的。
因為大家學C 語言和linux基礎時肯定都有接觸，客戶端和服務端的通信也都了解過，加上現在很多開放的第三方庫都不需要我們來操作底層的通信。
但是！還是想寫。底層的東西最好了解下。
效果
由于5M的上傳限制GIF可能看不清 我再截兩張圖吧

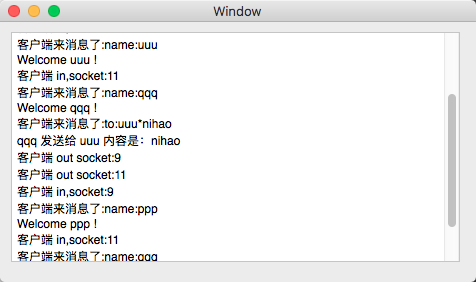

服務器

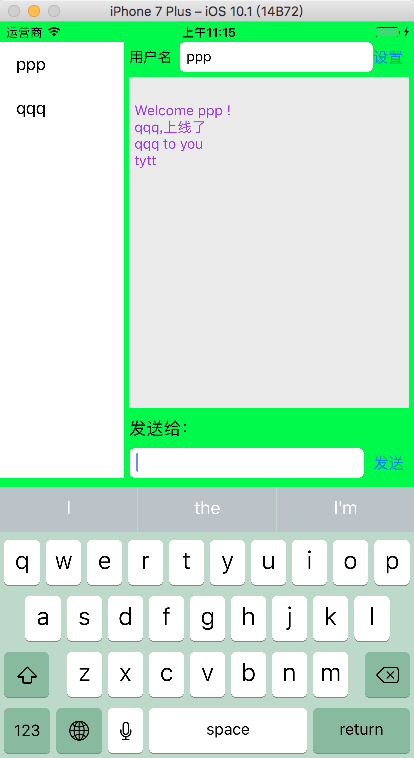

客戶端A
客戶端B
模型圖
分析
由上圖可以了解到服務器和客戶端需要做哪些工作
服務器
抽象一點分為:
1.創建線程等待接收客戶端的連接
2.接收并解析客戶端發來的消息
3.給客戶端發送消息
具體一點:
1.創建socket. 綁定端口.開始監聽.
2.創建線程.等待接收客戶端連接.
3.接收客戶端發來的消息
4.解析消息內容
a.設置用戶名
b.發送消息給指定客戶端
客戶端
抽象一點分為:
1.連接服務器
2.給服務器發送消息
3.接收服務器消息
4.解析消息內容
具體一點:
1.創建socket.綁定端口.連接服務器
2.發送消息
a.設置用戶名
b.給指定用戶發消息:按服務器格式拼接字符串
3.接收消息
a.普通消息
b.用戶列表:保存至用戶列表
UI方面
服務器:其實不用什么UI放個控件展示下日志就是了
客戶端:比較簡單,一個俗套聊天室的界面,直接storyboard里拖拖控件設置約束了
DEMO而已別太當真
代碼部分
服務器
要使用scoket需要引用這三個頭文件
#include <netinet/in.h>#include <sys/socket.h>#include <arpa/inet.h>
只有一個model,用來綁定用戶名和socket
@interface ClientModel : NSObject@property(nonatomic,assign)int clientSocket;@property(nonatomic,copy)NSString *clientName;@end
只有一個文件全給你
#import "ViewController.h"#include <netinet/in.h>#include <sys/socket.h>#include <arpa/inet.h>#import "ClientModel.h"static int const kMaxConnectCount = 5;@interface ViewController()@property (weak) IBOutlet NSTextField *textField;//@property (nonatomic,assign)int client_socket; //客戶端socket@property (unsafe_unretained) IBOutlet NSTextView *textView; @property (nonatomic,strong)NSMutableArray *clientArray; @property (nonatomic,strong)NSMutableArray *clientNameArray;@end@implementation ViewController- (NSMutableArray *)clientArray { if (!_clientArray) { _clientArray = [NSMutableArray array]; } return _clientArray;}- (NSMutableArray *)clientNameArray { if (!_clientNameArray) { _clientNameArray = [NSMutableArray array]; } return _clientNameArray;}- (void)viewDidLoad { [super viewDidLoad]; // Do any additional setup after loading the view. //創建socket int server_socket = socket(AF_INET, SOCK_STREAM, 0); if (server_socket == -1) { NSLog(@"創建失敗"); [self showLogsWithString:@"socket創建失敗"]; }else{ //綁定地址和端口 struct sockaddr_in server_addr; server_addr.sin_len = sizeof(struct sockaddr_in); server_addr.sin_family = AF_INET; server_addr.sin_port = htons(1234); server_addr.sin_addr.s_addr = inet_addr("127.0.0.1"); bzero(&(server_addr.sin_zero), 8); int bind_result = bind(server_socket, (struct sockaddr*)&server_addr, sizeof(server_addr)); if (bind_result == -1) { NSLog(@"綁定端口失敗"); [self showLogsWithString:@"綁定端口失敗"]; }else{ if (listen(server_socket, kMaxConnectCount)==-1) { NSLog(@"監聽失敗"); [self showLogsWithString:@"監聽失敗"]; }else{ for (int i = 0; i < kMaxConnectCount; i++) { //接受客戶端的鏈接 [self acceptClientWithServerSocket:server_socket]; } } } }}- (void)setRepresentedObject:(id)representedObject { [super setRepresentedObject:representedObject]; // Update the view, if already loaded.}//創建線程接受客戶端-(void)acceptClientWithServerSocket:(int)server_socket{ struct sockaddr_in client_address; socklen_t address_len; dispatch_queue_t queue = dispatch_get_global_queue(DISPATCH_QUEUE_PRIORITY_DEFAULT, 0); dispatch_async(queue, ^{ //創建新的socket while (1) { int client_socket = accept(server_socket, (struct sockaddr*)&client_address,&address_len ); if (client_socket == -1) { [self showLogsWithString:@"接受客戶端鏈接失敗"]; NSLog(@"接受客戶端鏈接失敗"); }else{ NSString *acceptInfo = [NSString stringWithFormat:@"客戶端 in,socket:%d",client_socket]; [self showLogsWithString:acceptInfo]; //接受客戶端數據 [self recvFromClinetWithSocket:client_socket]; } } });}//接受客戶端數據- (void)recvFromClinetWithSocket:(int)client_socket{ while (1) { //接受客戶端傳來的數據 char buf[1024] = {0}; long iReturn = recv(client_socket, buf, 1024, 0); if (iReturn>0) { NSLog(@"客戶端來消息了"); NSString *str = [NSString stringWithCString:buf encoding:NSUTF8StringEncoding]; [self showLogsWithString:[NSString stringWithFormat:@"客戶端來消息了:%@",str]]; [self checkRecvStr:str andClientSocket:client_socket]; }else if (iReturn == -1){ NSLog(@"讀取消息失敗"); [self showLogsWithString:@"讀取消息失敗"]; break; }else if (iReturn == 0){ NSLog(@"客戶端走了"); [self showLogsWithString:[NSString stringWithFormat:@"客戶端 out socket:%d",client_socket]]; NSMutableArray *array = [NSMutableArray arrayWithArray:self.clientArray]; for (ClientModel *model in array) { if (model.clientSocket == client_socket) { [self.clientNameArray removeObject:model.clientName]; [self.clientArray removeObject:model]; } } close(client_socket); break; } }} //檢查接受到的字符串- (void)checkRecvStr:(NSString*)str andClientSocket:(int)socket{ if ([str hasPrefix:@"name:"]) { NSString *name = [str substringFromIndex:5]; ClientModel *model = [[ClientModel alloc] init]; model.clientSocket = socket; model.clientName = name; if (self.clientArray.count > 0) { int flag = 999; //用戶名不能相同 int i = 0; for (ClientModel *client in self.clientArray) { //改名 if (client.clientSocket == socket) { NSString *oldName = self.clientNameArray[i]; self.clientNameArray[i] = name; self.clientArray[i] = model; for (ClientModel *oldclient in self.clientArray) { [self sendMsg:[NSString stringWithFormat:@"%@ 改名 %@",oldName,name] toClient:oldclient.clientSocket]; [self showLogsWithString:[NSString stringWithFormat:@"%@ 改名 %@",oldName,name]]; NSString *list = [self.clientNameArray componentsJoinedByString:@","]; //向客戶端推送當前在線列表 [self sendMsg:[NSString stringWithFormat:@"list:%@",list] toClient:oldclient.clientSocket]; } flag = 2; }else{ if ([client.clientName isEqualToString:model.clientName]) { //用戶名已存在 flag = 1; break; } } i++; } if (flag != 1 & flag != 2) { [self.clientArray addObject:model]; [self.clientNameArray addObject:model.clientName]; //向客戶端推送當前在線列表 for (ClientModel *client in self.clientArray) { [self sendMsg:[NSString stringWithFormat:@"%@,上線了",name] toClient:client.clientSocket]; NSString *list = [self.clientNameArray componentsJoinedByString:@","]; //向客戶端推送當前在線列表 [self sendMsg:[NSString stringWithFormat:@"list:%@",list] toClient:client.clientSocket]; } //給當前客戶端發送一條歡迎信息 NSString *msg = [NSString stringWithFormat:@"Welcome %@ !",name]; [self sendMsg:msg toClient:socket]; [self showLogsWithString:msg]; }else if (flag == 1){ [self sendMsg:@"注冊用戶名失敗，用戶名已經存在，請重新設置用戶名" toClient:socket]; [self showLogsWithString:[NSString stringWithFormat:@"socket %d 注冊用戶名失敗，設置的用戶名已經存在",socket]]; for (ClientModel *model in self.clientArray) { [name isEqualToString:model.clientName]; } } }else{ [self.clientArray addObject:model]; [self.clientNameArray addObject:model.clientName]; //向客戶端推送當前在線列表 //給當前客戶端發送一條歡迎信息 NSString *msg = [NSString stringWithFormat:@"Welcome %@ !",name]; [self sendMsg:msg toClient:socket]; [self showLogsWithString:msg]; NSString *list = [self.clientNameArray componentsJoinedByString:@","]; //向客戶端推送當前在線列表 [self sendMsg:[NSString stringWithFormat:@"list:%@",list] toClient:socket]; } } //給某人發消息 else if ([str hasPrefix:@"to:"]){ NSRange nameRange = [str rangeOfString:@"*"]; NSString *name = [str substringWithRange:NSMakeRange(3, nameRange.location-3)]; NSString *content = [str substringFromIndex:nameRange.location+1]; NSString *fromClientName; //找出發送者 for (ClientModel *model in self.clientArray) { if (socket == model.clientSocket) { fromClientName = model.clientName; break; } } //給目標發送信息 for (ClientModel *model in self.clientArray) { if ([name isEqualToString:model.clientName]) { NSString *msg = [NSString stringWithFormat:@"%@ to you/n%@",fromClientName,content]; [self sendMsg:msg toClient:model.clientSocket]; [self showLogsWithString:[NSString stringWithFormat:@"%@ 發送給 %@ 內容是：%@",fromClientName,name,content]]; break; } } }}//給客戶端發送信息- (void)sendMsg:(NSString*)msg toClient:(int)socket{ char *buf[1024] = {0}; const char *p1 = (char*)buf; p1 = [msg cStringUsingEncoding:NSUTF8StringEncoding]; send(socket, p1, 1024, 0);} //在界面上顯示日志- (void)showLogsWithString:(NSString*)str { dispatch_async(dispatch_get_main_queue(), ^{ NSString *newStr = [NSString stringWithFormat:@"/n%@",str]; self.textView.string = [self.textView.string stringByAppendingString:newStr]; });}@end客戶端
由于客戶端設計的就比較簡單,所以代碼量也很少,全給你.
#import "ViewController.h"#include <netinet/in.h>#include <sys/socket.h>#include <arpa/inet.h>@interface ViewController ()<UITableViewDelegate,UITableViewDataSource>//服務器socket@property (nonatomic,assign)int server_socket;//UI@property (weak, nonatomic) IBOutlet UITextField *userNameField;@property (weak, nonatomic) IBOutlet UITextView *chatView;@property (weak, nonatomic) IBOutlet UITextField *msgField;@property (weak, nonatomic) IBOutlet UILabel *toName;@property (weak, nonatomic) IBOutlet UIView *onlineUserView;@property (nonatomic,strong)UITableView *onlineTable;//user列表@property (nonatomic,strong)NSMutableArray *userArray;@end@implementation ViewController- (NSMutableArray *)userArray { if (!_userArray) { _userArray = [NSMutableArray array]; } return _userArray;}- (void)viewDidLoad { [super viewDidLoad]; [self.userNameField becomeFirstResponder]; self.userNameField.text = @""; self.msgField.text = @""; //添加table用戶列表 self.onlineTable = [[UITableView alloc] initWithFrame:self.onlineUserView.frame style:UITableViewStylePlain]; self.onlineTable.delegate = self; self.onlineTable.dataSource = self; [self.view addSubview:self.onlineTable]; int server_socket = socket(AF_INET, SOCK_STREAM, 0); if (server_socket == -1) { NSLog(@"創建失敗"); }else{ //綁定地址和端口 struct sockaddr_in server_addr; server_addr.sin_len = sizeof(struct sockaddr_in); server_addr.sin_family = AF_INET; server_addr.sin_port = htons(1234); server_addr.sin_addr.s_addr = inet_addr("127.0.0.1"); bzero(&(server_addr.sin_zero), 8); //接受客戶端的鏈接 dispatch_queue_t queue = dispatch_get_global_queue(DISPATCH_QUEUE_PRIORITY_DEFAULT, 0); dispatch_async(queue, ^{ //創建新的socket int aResult = connect(server_socket, (struct sockaddr*)&server_addr, sizeof(struct sockaddr_in)); if (aResult == -1) { NSLog(@"鏈接失敗"); }else{ self.server_socket = server_socket; [self acceptFromServer]; } }); }}//從服務端接受消息- (void)acceptFromServer{ while (1) { //接受服務器傳來的數據 char buf[1024]; long iReturn = recv(self.server_socket, buf, 1024, 0); if (iReturn>0) { NSString *str = [NSString stringWithCString:buf encoding:NSUTF8StringEncoding]; //篩選前綴 if ([str hasPrefix:@"list:"]) { NSString *arrayStr = [str substringFromIndex:5]; NSArray *list = [arrayStr componentsSeparatedByString:@","]; self.userArray = [NSMutableArray arrayWithArray:list]; dispatch_async(dispatch_get_main_queue(), ^{ [self.onlineTable reloadData]; }); NSLog(@"當前在線用戶列表：%@",arrayStr); }else{ //回到主線程 界面上顯示內容 [self showLogsWithString:str]; } }else if (iReturn == -1){ NSLog(@"接受失敗-1"); break; } }}//在界面上顯示日志- (void)showLogsWithString:(NSString*)str { dispatch_async(dispatch_get_main_queue(), ^{ NSString *newStr = [NSString stringWithFormat:@"/n%@",str]; self.chatView.text = [self.chatView.text stringByAppendingString:newStr]; });}- (void)didReceiveMemoryWarning { [super didReceiveMemoryWarning]; // Dispose of any resources that can be recreated.}//設置用戶名- (IBAction)clickSetUserName:(id)sender { NSString *msg = [NSString stringWithFormat:@"name:%@",self.userNameField.text] ; [self sendMsg:msg];// [self showLogsWithString:msg]; [self.msgField becomeFirstResponder];}//發送信息- (IBAction)clickSendMsg:(id)sender { if ([self.msgField.text isEqualToString:@""] || ![self.userArray containsObject:self.userNameField.text] || [self.toName.text isEqualToString:self.userNameField.text]) { [self showLogsWithString:@"請設置用戶名、檢查發送對象、消息不能為空"]; return; } NSString *msg = [NSString stringWithFormat:@"to:%@*%@",self.toName.text,self.msgField.text]; [self sendMsg:msg]; NSString *displayMsg = [NSString stringWithFormat:@"to:%@/n%@",self.toName.text,self.msgField.text]; [self showLogsWithString:displayMsg]; self.msgField.text = @"";}//給客戶端發送信息- (void)sendMsg:(NSString*)msg { char *buf[1024] = {0}; const char *p1 = (char*)buf; p1 = [msg cStringUsingEncoding:NSUTF8StringEncoding]; send(self.server_socket, p1, 1024, 0);}#pragma mark - TableViewDelegate & dataSource- (NSInteger)tableView:(UITableView *)tableView numberOfRowsInSection:(NSInteger)section{ return self.userArray.count;}- (UITableViewCell *)tableView:(UITableView *)tableView cellForRowAtIndexPath:(NSIndexPath *)indexPath{ static NSString *cellId = @"onlinetableviewcellid"; UITableViewCell *cell = [tableView dequeueReusableCellWithIdentifier:cellId]; if (cell == nil) { cell = [[UITableViewCell alloc] initWithStyle:UITableViewCellStyleDefault reuseIdentifier:cellId]; }else{ NSLog(@"cell重用了"); } cell.textLabel.text = self.userArray[indexPath.row]; return cell;}//點擊cell- (void)tableView:(UITableView *)tableView didSelectRowAtIndexPath:(NSIndexPath *)indexPath{ self.toName.text = self.userArray[indexPath.row]; [self.msgField becomeFirstResponder];}@endDemo地址：IMsocketDemo_jb51.rar
以上就是本文的全部內容，希望對大家的學習有所幫助，也希望大家多多支持武林網。
