#define XYQColor(r, g, b) [UIColor colorWithRed:(r)/255.0 green:(g)/255.0 blue:(b)/255.0 alpha:1.0]#define XYQRandomColor XYQColor(arc4random_uniform(256), arc4random_uniform(256), arc4random_uniform(256))#define MARGIN  30 // 坐標軸與畫布間距#define Y_EVERY_MARGIN 20 // y軸每一個值的間隔數#import <UIKit/UIKit.h>// 線條類型typedef NS_ENUM(NSInteger, LineType) { LineType_Straight, // 折線 LineType_Curve // 曲線};@interface BezierCurveView : UIView//初始化畫布+(instancetype)initWithFrame:(CGRect)frame;//畫多根折線圖-(void)drawMoreLineChartViewWithX_Value_Names:(NSMutableArray *)x_names TargetValues:(NSMutableArray *)targetValues LineType:(LineType) lineType;@end

#import "BezierCurveView.h"static CGRect myFrame;@interface BezierCurveView ()@end

@implementation BezierCurveView//初始化畫布+(instancetype)initWithFrame:(CGRect)frame{ BezierCurveView *bezierCurveView = [[BezierCurveView alloc]init];  bezierCurveView.frame = frame; //背景視圖 UIView *backView = [[UIView alloc] initWithFrame:CGRectMake(0, 0, frame.size.width, frame.size.height)]; backView.backgroundColor = [UIColor clearColor]; [bezierCurveView addSubview:backView]; myFrame = frame; return bezierCurveView;}

/** * 畫坐標軸 */-(void)drawXYLine:(NSMutableArray *)x_names{ UIBezierPath *path = [UIBezierPath bezierPath]; //1.Y軸、X軸的直線 [path moveToPoint:CGPointMake(MARGIN, CGRectGetHeight(myFrame)-MARGIN)]; [path addLineToPoint:CGPointMake(MARGIN, MARGIN)]; [path moveToPoint:CGPointMake(MARGIN, CGRectGetHeight(myFrame)-MARGIN)]; [path addLineToPoint:CGPointMake(CGRectGetWidth(myFrame), CGRectGetHeight(myFrame)-MARGIN)];// //2.添加箭頭// [path moveToPoint:CGPointMake(MARGIN, MARGIN)];// [path addLineToPoint:CGPointMake(MARGIN-5, MARGIN+5)];// [path moveToPoint:CGPointMake(MARGIN, MARGIN)];// [path addLineToPoint:CGPointMake(MARGIN+5, MARGIN+5)];// // [path moveToPoint:CGPointMake(CGRectGetWidth(myFrame), CGRectGetHeight(myFrame)-MARGIN)];// [path addLineToPoint:CGPointMake(CGRectGetWidth(myFrame)-5, CGRectGetHeight(myFrame)-MARGIN-5)];// [path moveToPoint:CGPointMake(CGRectGetWidth(myFrame), CGRectGetHeight(myFrame)-MARGIN)];// [path addLineToPoint:CGPointMake(CGRectGetWidth(myFrame)-5, CGRectGetHeight(myFrame)-MARGIN+5)]; //3.添加索引格 //X軸 for (int i=0; i<x_names.count; i++) { CGFloat X = MARGIN + (CGRectGetWidth(myFrame)-30)/x_names.count*(i+1)-(CGRectGetWidth(myFrame)-30)/x_names.count/2.0; CGPoint point = CGPointMake(X,CGRectGetHeight(myFrame)-MARGIN); [path moveToPoint:point]; [path addLineToPoint:CGPointMake(point.x, point.y-3)]; } //Y軸（實際長度為200,此處比例縮小一倍使用） for (int i=0; i<11; i++) { CGFloat Y = CGRectGetHeight(myFrame)-MARGIN-Y_EVERY_MARGIN*i; CGPoint point = CGPointMake(MARGIN,Y); [path moveToPoint:point]; [path addLineToPoint:CGPointMake(point.x+3, point.y)]; } //4.添加索引格文字 //X軸 for (int i=0; i<x_names.count; i++) { CGFloat X = MARGIN + (CGRectGetWidth(myFrame)-30)/x_names.count/2.0 + (CGRectGetWidth(myFrame)-30)/x_names.count*i-(CGRectGetWidth(myFrame)-30)/x_names.count/2.0; UILabel *textLabel = [[UILabel alloc] initWithFrame:CGRectMake(X, CGRectGetHeight(myFrame)-MARGIN, (CGRectGetWidth(myFrame)-60)/x_names.count, 20)]; textLabel.text = x_names[i]; textLabel.font = [UIFont systemFontOfSize:10]; textLabel.textAlignment = NSTextAlignmentCenter; textLabel.textColor = [UIColor blueColor]; [self addSubview:textLabel]; } //Y軸 for (int i=0; i<11; i++) { CGFloat Y = CGRectGetHeight(myFrame)-MARGIN-Y_EVERY_MARGIN*i; UILabel *textLabel = [[UILabel alloc] initWithFrame:CGRectMake(0, Y-5, MARGIN, 10)]; textLabel.text = [NSString stringWithFormat:@"%d",10*i]; textLabel.font = [UIFont systemFontOfSize:10]; textLabel.textAlignment = NSTextAlignmentCenter; textLabel.textColor = [UIColor redColor]; [self addSubview:textLabel]; } //5.渲染路徑 CAShapeLayer *shapeLayer = [CAShapeLayer layer]; shapeLayer.path = path.CGPath; shapeLayer.strokeColor = [UIColor blackColor].CGColor; shapeLayer.fillColor = [UIColor clearColor].CGColor; shapeLayer.borderWidth = 2.0; [self.subviews[0].layer addSublayer:shapeLayer];}

/** * 畫多根折線圖 */-(void)drawMoreLineChartViewWithX_Value_Names:(NSMutableArray *)x_names TargetValues:(NSMutableArray *)targetValues LineType:(LineType) lineType{ //1.畫坐標軸 [self drawXYLine:x_names]; for (int j=0; j<targetValues.count; j++) { //2.獲取目標值點坐標 NSMutableArray *allPoints = [NSMutableArray array]; for (int i=0; i<[targetValues[j] count]; i++) {  CGFloat doubleValue = 2*[targetValues[j][i] floatValue]; //目標值放大兩倍  CGFloat X = MARGIN + (CGRectGetWidth(myFrame)-30)/x_names.count*(i+1)-(CGRectGetWidth(myFrame)-30)/x_names.count/2.0;  CGFloat Y = CGRectGetHeight(myFrame)-MARGIN-doubleValue;  CGPoint point = CGPointMake(X,Y);  UIBezierPath *path = [UIBezierPath bezierPathWithRoundedRect:CGRectMake(point.x-1, point.y-1, 2.5, 2.5) cornerRadius:2.5];  CAShapeLayer *layer = [CAShapeLayer layer];  layer.strokeColor = [UIColor purpleColor].CGColor;  layer.fillColor = [UIColor purpleColor].CGColor;  layer.path = path.CGPath;  [self.subviews[0].layer addSublayer:layer];  [allPoints addObject:[NSValue valueWithCGPoint:point]]; } //3.坐標連線 UIBezierPath *path = [UIBezierPath bezierPath]; [path moveToPoint:[allPoints[0] CGPointValue]]; CGPoint PrePonit; switch (lineType) {  case LineType_Straight: //直線  for (int i =1; i<allPoints.count; i++) {   CGPoint point = [allPoints[i] CGPointValue];   [path addLineToPoint:point];  }  break;  case LineType_Curve: //曲線  for (int i =0; i<allPoints.count; i++) {   if (i==0) {   PrePonit = [allPoints[0] CGPointValue];   }else{   CGPoint NowPoint = [allPoints[i] CGPointValue];   [path addCurveToPoint:NowPoint controlPoint1:CGPointMake((PrePonit.x+NowPoint.x)/2, PrePonit.y) controlPoint2:CGPointMake((PrePonit.x+NowPoint.x)/2, NowPoint.y)]; //三次曲線   PrePonit = NowPoint;   }  }  break; } CAShapeLayer *shapeLayer = [CAShapeLayer layer]; shapeLayer.path = path.CGPath; shapeLayer.strokeColor = XYQRandomColor.CGColor; shapeLayer.fillColor = [UIColor clearColor].CGColor; shapeLayer.borderWidth = 2.0; [self.subviews[0].layer addSublayer:shapeLayer]; }}

#define SCREEN_W [UIScreen mainScreen].bounds.size.width#define SCREEN_H [UIScreen mainScreen].bounds.size.height

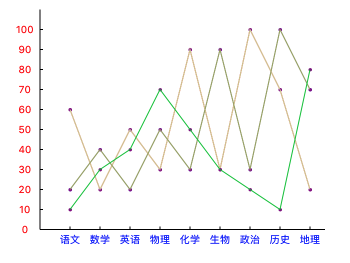

 //1.初始化 _bezierView = [BezierCurveView initWithFrame:CGRectMake(30, 30, SCREEN_W-60, 280)]; _bezierView.center = self.view.center; [self.view addSubview:_bezierView]; // 多根折線圖 [_bezierView drawMoreLineChartViewWithX_Value_Names:(NSMutableArray *)@[@"語文",@"數學",@"英語",@"物理",@"化學",@"生物",@"政治",@"歷史",@"地理"] TargetValues:(NSMutableArray *)@[@[@60,@20,@50,@30,@90,@30,@100,@70, @20],@[@20,@40,@20,@50,@30,@90,@30,@100,@70],@[@10,@30,@40,@70,@50,@30,@20,@10,@80]] LineType:LineType_Straight];
