這篇教程是向大家介紹利用3DSMAX書房材質貼圖的制作方法，教程比較實用，介紹制作方法及步驟也非常詳細，所以推薦過來和學習3DSMA的朋友們一起分享，希望大家能喜歡。我們先來看看最終的效果：

INTRODUCTION | 介紹

Here will explain very simple practice interior render with HDRI lighting· 關于室內HDRI真實燈光的一篇簡單教程

PREPARATION | 預置

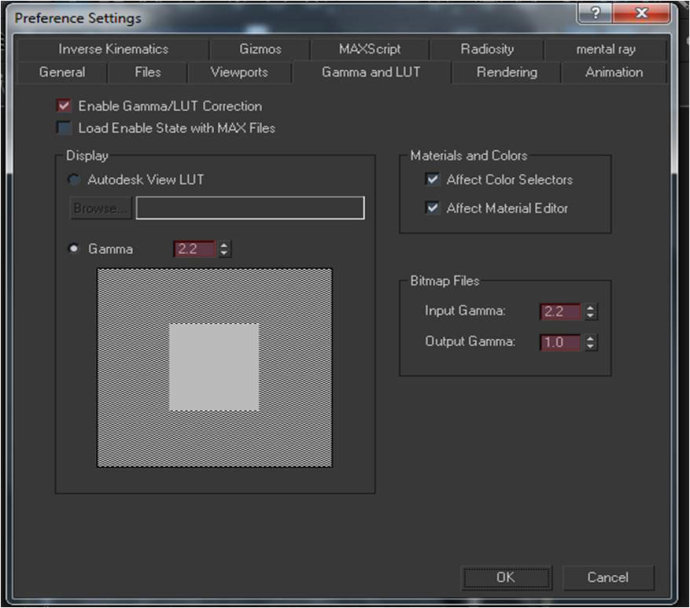

For all my projects I set my gamma for LWWF(Linear Workflow) to get a correct brightness and because I want to do post production on my image：個人的一個作圖習慣 - 把gamma設置成LWWF(Linear Workflow.線性流程)以獲得最真實的光感，減少后期工作。

MODELING | 建模

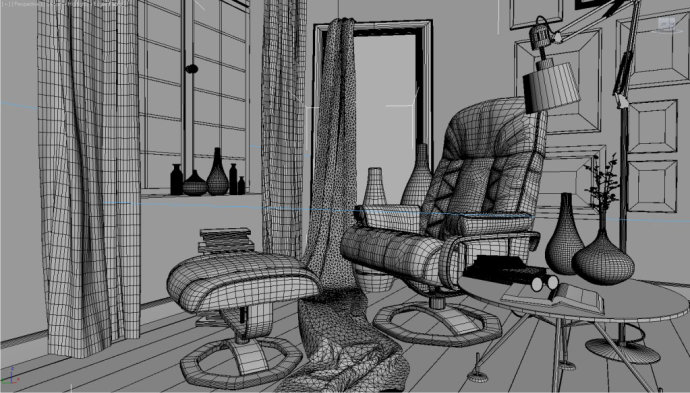

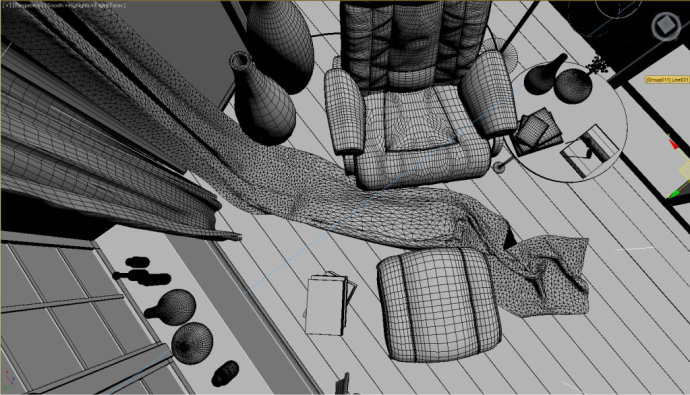

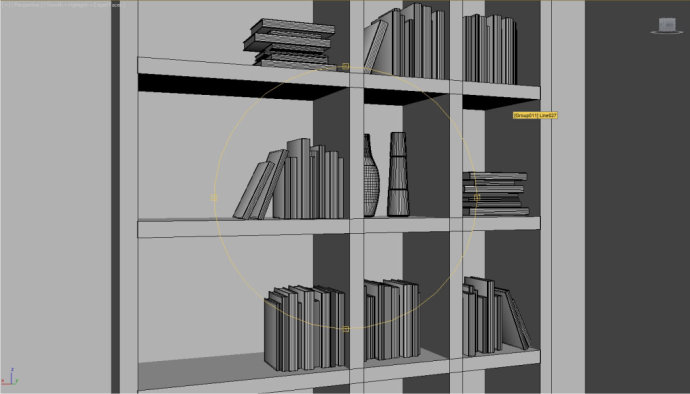

In this scene I used ready made models for accessaries, so I just modeled the wall, floor, window object using basic edit poly. And I created a simple decorative cloth model in Clo3d 2011.· 場景里基本使用的都是外部引入的家具擺設模型，只需要建門窗地板，然后要提到的是用Clo3d 2011(三維服裝軟件)做了個簡單的衣服模型。

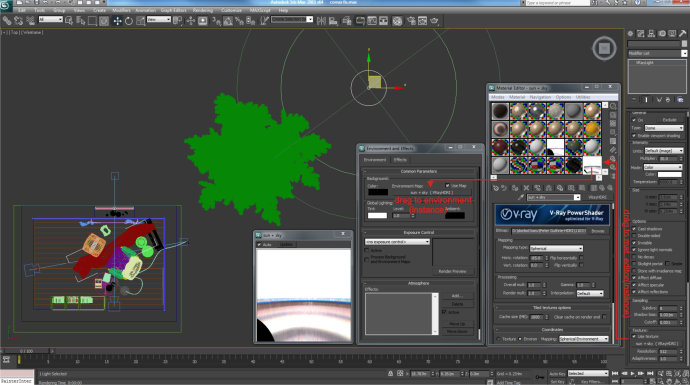

As I said before, in this scene I am using HDRI lighting with Vraylight Dome+HDRI map. You can see my method in the image below.· 場景用到的是HDRI 燈光和Vray燈光頂（Vraylight Dome）+ HDRI貼圖，如下圖所示。

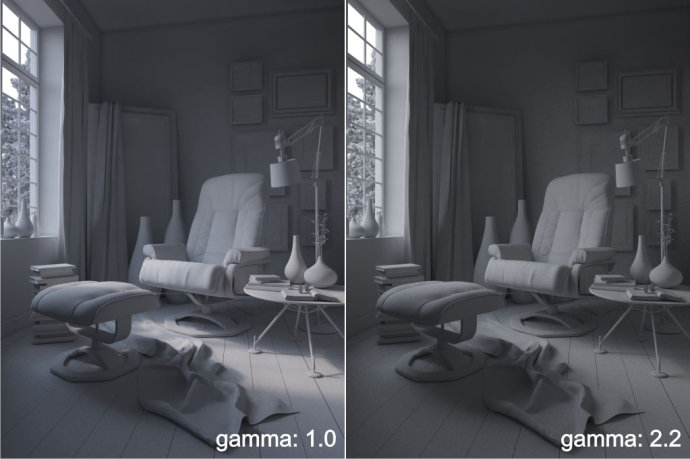

You only have to set the mapping type to spherical, horiz,. rotation to control the sum beam direction, and gamma to set a correct GI, sun and strong shadow shape.· 只需把設貼圖設置成球形水平旋轉來控制光束的大方向，把gamma設置成正確的GI，太陽光和重陰影形狀。This is the simulation using different gamma values:· 下面是不同gamma值下的效果。

Increased gamma can make a soft shadow effect and weak sun lighting. Decreased gamma can make the shadow look sharpen and strong sun lighting.· 較高的gamma值能達到柔和的光影效果，而較低的光影對比更強烈。

Of course it is not a fixed setting. Different scenes require you to set different gamma values and also different horiz. rotation to get the correct lighting in your scene.· 當然這不是唯一的參數設置，對于不同場景要靈活運用不同的gamma值和不同的水平旋轉來達到最佳的光影效果。

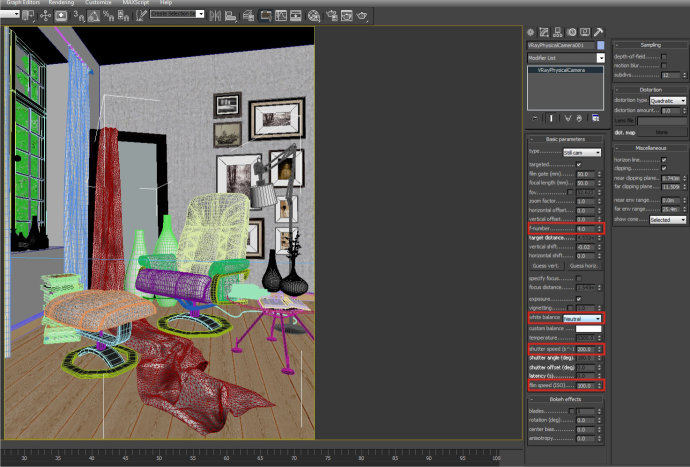

CAMERA SETTINGS | 相機設定 Just simple setting for my vrayphysical camera.· 以下是vray物理相機的簡單參數

MATERIAL AND TEXTURING

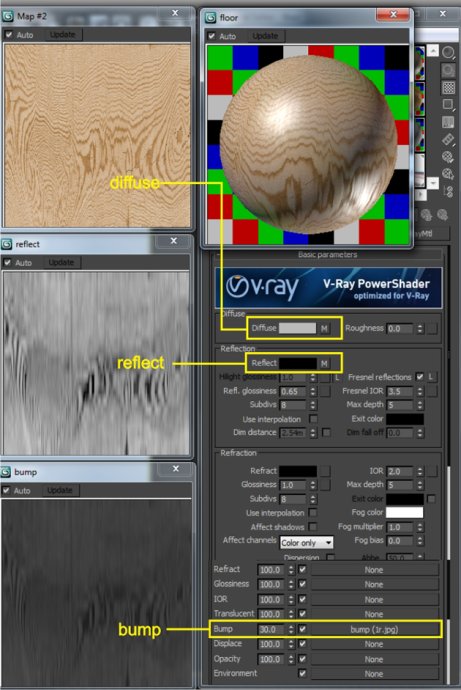

There are a lot of advanced materials that I use in the simple scene. I only use standard method color selector to set the diffuse and reflect properties.· 在這個簡單的場景里有很多高級材質設置，在反射上只用到了基本的方法，沒什么特別的。Wood floor · 地板
