繼上一篇中間表的數據是動態的，圖表展示的數據才比較準確。這里用到一個新的模塊Djcelery，安裝配置步驟如下：

1.安裝

redis==2.10.6

celery==3.1.23

django-celery==3.1.17

flower==0.9.2

supervisor==3.3.4

flower用于監控定時任務，supervisor管理進程，可選

2.配置

settings.py中添加以下幾行：

#最頂頭加上from __future__ import absolute_import# celery settingsimport djcelerydjcelery.setup_loader()BROKER_URL = 'redis://localhost:6379'# BROKER_URL = 'redis://:密碼@主機地址:端口號/數據庫號'CELERYBEAT_SCHEDULER = 'djcelery.schedulers.DatabaseScheduler' # 定時任務CELERY_RESULT_BACKEND = 'djcelery.backends.database:DatabaseBackend'CELERY_RESULT_BACKEND = 'redis://localhost:6379'CELERY_ACCEPT_CONTENT = ['application/json']CELERY_TASK_SERIALIZER = 'json'CELERY_RESULT_SERIALIZER = 'json'CELERYD_MAX_TASKS_PER_CHILD = 40CELERY_TIMEZONE = 'Asia/Shanghai'INSTALLED_APPS = [　　'djcelery',# 添加djcelery]

3.注冊定時任務的幾個表

from __future__ import absolute_import, unicode_literalsfrom djcelery.models import (  TaskState, WorkerState,  PeriodicTask, IntervalSchedule, CrontabSchedule,)from xadmin.sites import sitesite.register(IntervalSchedule) # 存儲循環任務設置的時間site.register(CrontabSchedule) # 存儲定時任務設置的時間site.register(PeriodicTask) # 存儲任務site.register(TaskState) # 存儲任務執行狀態site.register(WorkerState) # 存儲執行任務的worker

4.主應用下添加celery.py

__init__.py修改如下：

# __init__.pyfrom __future__ import absolute_importfrom .celery import app as celery_app# celery.pyfrom __future__ import absolute_importimport osfrom celery import Celery, platformsfrom django.conf import settings# set the default Django settings module for the 'celery' program.os.environ.setdefault('DJANGO_SETTINGS_MODULE', 'hermes.settings')# hermes主應用名app = Celery('hermes')platforms.C_FORCE_ROOT = Trueapp.config_from_object('django.conf:settings')app.autodiscover_tasks(lambda: settings.INSTALLED_APPS)@app.task(bind=True)def debug_task(self):  print('Request: {0!r}'.format(self.request))

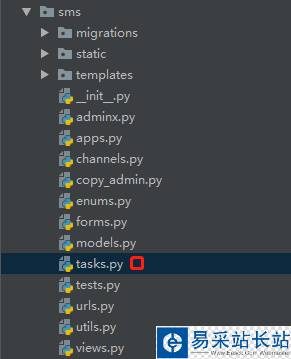

5.添加任務 應用下添加tasks.py

from __future__ import absolute_importfrom celery import taskimport timefrom .channels import Cache_data_to_redis# 更新指定日期數據到sms_organizationcount@taskdef readAndWrite(begin,end):  begin = str(begin)[:4] + '-' + str(begin)[4:6] + '-' + str(begin)[6:8]  end = str(end)[:4] + '-' + str(end)[4:6] + '-' + str(end)[6:8]  i = 0  begin_time = time.time()  read = Cache_data_to_redis().connection  Rcursor = read.cursor()  query = "SELECT id from sms_organizationcount WHERE alia_date_time between '"  query += begin  query += "' and '"  query += end  query += "'"  readSql = "SELECT alia_month_time, alia_date_time, count(*) as total_nums, count(t.`status`=2 or null) as error_nums, name FROM /       (select *, DATE_FORMAT(req_time,'%Y-%m') as alia_month_time, DATE_FORMAT(req_time,'%Y-%m-%d') as alia_date_time, /       LEFT(body,LOCATE('】',body)) as name from sms_smslog where LOCATE('】',body) >0 /       and LEFT(body,1)='【' and DATE_FORMAT(req_time,'%Y-%m-%d') between '"  readSql += begin  readSql += "' and '"  readSql += end  readSql += "')"  readSql += " as t GROUP BY alia_date_time , name;"  Rcursor.execute(readSql)  readResult = Rcursor.fetchall()  Rcursor.execute(query)  query_result = Rcursor.fetchall()  deleteSql = "delete from sms_organizationcount where alia_date_time between '%s' and '%s'" % (begin,end)  if query_result:    delete_record = Cache_data_to_redis().connection    Dcursor = delete_record.cursor()    Dcursor.execute(deleteSql)    delete_record.commit()    delete_record.close()    for value in readResult:    write = Cache_data_to_redis().connection    Wcursor = write.cursor()    writeSql = "INSERT into sms_organizationcount (alia_month_time, alia_date_time, total_nums, error_nums, `name`) " /          " VALUES ('%s', '%s', '%s', '%s', '%s' )" %/          (value['alia_month_time'], value['alia_date_time'], value['total_nums'], value['error_nums'], value['name'])    try:      Wcursor.execute(writeSql)      i += 1      write.commit()    except:      write.rollback()    write.close()  read.close()  end_time = time.time()  pass_time = end_time - begin_time  return i, pass_time
