1. 源起：

仍然是模塊化編程所引發的需求。產品經理難伺候，女產品經理更甚之~:p

純屬戲謔，技術方案與產品經理無關，芋頭莫怪！

VCU10項目重構，要求各功能模塊以獨立進程方式實現，比如：音視頻轉換模塊，若以獨立進程方式實現，如何控制其暫停、繼續等功能呢？

線程可以Suspend、Resume，c#內置的Process沒有此類方法，咋整？

山窮水盡疑無路，柳暗花明又一村。情到濃時清轉薄，此情可待成追憶！

前篇描述了進程間數據傳遞方法，此篇亦以示例演示其間控制與數據交互方法。

2、未公開的API函數：NtSuspendProcess、NtResumeProcess

此類函數在MSDN中找不到。

思其原因，概因它們介于Windows API和內核API之間，威力不容小覷。怕二八耙子程序員濫用而引發事端，因此密藏。

其實還有個NtTerminateProcess，因Process有Kill方法，因此可不用。

但再隱秘的東西，只要有價值，都會被人給翻出來，好酒不怕巷子深么！

好，基于其，設計一個進程管理類，實現模塊化編程之進程間控制這個需求。

3、ProcessMgr

直上代碼吧，封裝一個進程管理單元：

public static class ProcessMgr {  /// <summary>  /// The process-specific access rights.  /// </summary>  [Flags]  public enum ProcessAccess : uint  {   /// <summary>   /// Required to terminate a process using TerminateProcess.   /// </summary>   Terminate = 0x1,   /// <summary>   /// Required to create a thread.   /// </summary>   CreateThread = 0x2,   /// <summary>   /// Undocumented.   /// </summary>   SetSessionId = 0x4,   /// <summary>   /// Required to perform an operation on the address space of a process (see VirtualProtectEx and WriteProcessMemory).   /// </summary>   VmOperation = 0x8,   /// <summary>   /// Required to read memory in a process using ReadProcessMemory.   /// </summary>   VmRead = 0x10,   /// <summary>   /// Required to write to memory in a process using WriteProcessMemory.   /// </summary>   VmWrite = 0x20,   /// <summary>   /// Required to duplicate a handle using DuplicateHandle.   /// </summary>   DupHandle = 0x40,   /// <summary>   /// Required to create a process.   /// </summary>   CreateProcess = 0x80,   /// <summary>   /// Required to set memory limits using SetProcessWorkingSetSize.   /// </summary>   SetQuota = 0x100,   /// <summary>   /// Required to set certain information about a process, such as its priority class (see SetPriorityClass).   /// </summary>   SetInformation = 0x200,   /// <summary>   /// Required to retrieve certain information about a process, such as its token, exit code, and priority class (see OpenProcessToken, GetExitCodeProcess, GetPriorityClass, and IsProcessInJob).   /// </summary>   QueryInformation = 0x400,   /// <summary>   /// Undocumented.   /// </summary>   SetPort = 0x800,   /// <summary>   /// Required to suspend or resume a process.   /// </summary>   SuspendResume = 0x800,   /// <summary>   /// Required to retrieve certain information about a process (see QueryFullProcessImageName). A handle that has the PROCESS_QUERY_INFORMATION access right is automatically granted PROCESS_QUERY_LIMITED_INFORMATION.   /// </summary>   QueryLimitedInformation = 0x1000,   /// <summary>   /// Required to wait for the process to terminate using the wait functions.   /// </summary>   Synchronize = 0x100000  }  [DllImport("ntdll.dll")]  private static extern uint NtResumeProcess([In] IntPtr processHandle);  [DllImport("ntdll.dll")]  private static extern uint NtSuspendProcess([In] IntPtr processHandle);  [DllImport("kernel32.dll", SetLastError = true)]  private static extern IntPtr OpenProcess(   ProcessAccess desiredAccess,   bool inheritHandle,   int processId);  [DllImport("kernel32.dll", SetLastError = true)]  [return: MarshalAs(UnmanagedType.Bool)]  private static extern bool CloseHandle([In] IntPtr handle);  public static void SuspendProcess(int processId)  {   IntPtr hProc = IntPtr.Zero;   try   {    // Gets the handle to the Process    hProc = OpenProcess(ProcessAccess.SuspendResume, false, processId);    if (hProc != IntPtr.Zero)     NtSuspendProcess(hProc);   }   finally   {    // Don't forget to close handle you created.    if (hProc != IntPtr.Zero)     CloseHandle(hProc);   }  }  public static void ResumeProcess(int processId)  {   IntPtr hProc = IntPtr.Zero;   try   {    // Gets the handle to the Process    hProc = OpenProcess(ProcessAccess.SuspendResume, false, processId);    if (hProc != IntPtr.Zero)     NtResumeProcess(hProc);   }   finally   {    // Don't forget to close handle you created.    if (hProc != IntPtr.Zero)     CloseHandle(hProc);   }  } }

4、進程控制

我權且主進程為宿主，它通過Process類調用子進程，得其ID，以此為用。其調用代碼為：

 private void RunTestProcess(bool hidden = false)  {   string appPath = Path.GetDirectoryName(Application.ExecutablePath);   string testAppPath = Path.Combine(appPath, "TestApp.exe");   var pi = new ProcessStartInfo();   pi.FileName = testAppPath;   pi.Arguments = this.Handle.ToString();   pi.WindowStyle = hidden ? ProcessWindowStyle.Hidden : ProcessWindowStyle.Normal;   this.childProcess = Process.Start(pi);   txtInfo.Text = string.Format("子進程ID：{0}/r/n子進程名：{1}", childProcess.Id, childProcess.ProcessName);   ...  }

控制代碼為：

private void btnWork_Click(object sender, EventArgs e)  {   if (this.childProcess == null || this.childProcess.HasExited)    return;   if ((int)btnWork.Tag == 0)   {    btnWork.Tag = 1;    btnWork.Text = "恢復";    ProcessMgr.SuspendProcess(this.childProcess.Id);   }   else   {    btnWork.Tag = 0;    btnWork.Text = "掛起";    ProcessMgr.ResumeProcess(this.childProcess.Id);   }  }

子進程以一定時器模擬其工作，向主進程拋進度消息：

 private void timer_Tick(object sender, EventArgs e)  {   if (progressBar.Value < progressBar.Maximum)    progressBar.Value += 1;   else    progressBar.Value = 0;   if (this.hostHandle != IntPtr.Zero)    SendMessage(this.hostHandle, WM_PROGRESS, 0, progressBar.Value);  }

代碼量就這么的少，簡單吧……

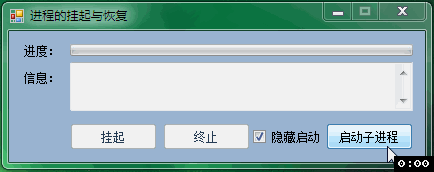

5、效果圖：

為示例，做了兩個圖，其一為顯示子進程，其二為隱藏子進程。
