概述

頁眉頁腳是一篇完整、精致的文檔的重要組成部分。在頁眉頁腳處，可以呈現的內容很多，如公司名稱、頁碼、工作表名、日期、圖片，如LOGO、標記等。在下面的文章中，將介紹如何在PDF中添加頁眉頁腳。通過代碼測試，添加頁眉頁腳可以分兩種情況來實現效果：

1.通過添加新的一頁，在新建的頁面上來添加頁眉頁腳

2.通過給現有文檔直接添加頁眉頁腳

下面將根據這兩種情況介紹具體的C#代碼操作

使用工具

Free Spire.PDF for .NET 4.3（社區版）

示例代碼（供參考）

1.新建一頁來添加頁眉頁腳

1.1 添加頁眉

【C#】

using Spire.Pdf;using Spire.Pdf.Graphics;using System.Drawing;using System;namespace AddHeader_PDF{  class Program  {    static void Main(string[] args)    {      //新建一個PdfDocument類對象，并添加一頁      PdfDocument pdf = new PdfDocument();      PdfPageBase page = pdf.Pages.Add();      //設置margin      PdfUnitConvertor unitCvtr = new PdfUnitConvertor();      PdfMargins margin = new PdfMargins();      margin.Top = unitCvtr.ConvertUnits(2.54f, PdfGraphicsUnit.Centimeter, PdfGraphicsUnit.Point);      margin.Bottom = margin.Top;      margin.Left = unitCvtr.ConvertUnits(4.17f, PdfGraphicsUnit.Centimeter, PdfGraphicsUnit.Point);      margin.Right = margin.Left;      //調用AddHeader()方法添加頁眉      AddHeader(pdf, PdfPageSize.A4, margin);      //保存并打開文檔      pdf.SaveToFile("PDF頁眉.pdf");      System.Diagnostics.Process.Start("PDF頁眉.pdf");    }    static void AddHeader(PdfDocument doc, SizeF pageSize, PdfMargins margin)    {      //初始化一個PdfPageTemplateElement對象，用于創建頁眉      PdfPageTemplateElement headerSpace = new PdfPageTemplateElement(pageSize.Width, margin.Top);      headerSpace.Foreground = true;      doc.Template.Top = headerSpace;      //在頁眉部分繪入文字      PdfTrueTypeFont font = new PdfTrueTypeFont(new Font("Arial Unicode MS", 10f), true);      PdfStringFormat format = new PdfStringFormat(PdfTextAlignment.Right);      String headerText = "WORLD TRADE ORGANIZATION, WTO /n THE INTERNATIONAL ORGANIZATION THAT REGULATES INTERNATIONAL TRADE";      float x = PdfPageSize.A4.Width;      float y = 0;      headerSpace.Graphics.DrawString(headerText, font, PdfBrushes.Black, x, y, format);      //在頁眉部分繪入圖片      PdfImage headerImage = PdfImage.FromFile(@"C:/Users/Administrator/Desktop/1.png");      float width = headerImage.Width / 2;      float height = headerImage.Height / 3;      headerSpace.Graphics.DrawImage(headerImage, 0, 0, width, height);    }  }}

頁眉添加效果：

C#,PDF,頁眉,頁腳,代碼

1.2添加頁腳

【C#】

using Spire.Pdf;using Spire.Pdf.Graphics;using System.Drawing;using System;using Spire.Pdf.AutomaticFields;namespace AddFooter_PDF{  class Program  {    static void Main(string[] args)    {      //新建一個PdfDocument類對象，添加一頁      PdfDocument doc = new PdfDocument();      PdfPageBase page = doc.Pages.Add();      //設置margin      PdfUnitConvertor unitCvtr = new PdfUnitConvertor();      PdfMargins margin = new PdfMargins();      margin.Top = unitCvtr.ConvertUnits(2.54f, PdfGraphicsUnit.Centimeter, PdfGraphicsUnit.Point);      margin.Bottom = margin.Top;      margin.Left = unitCvtr.ConvertUnits(4.17f, PdfGraphicsUnit.Centimeter, PdfGraphicsUnit.Point);      margin.Right = margin.Left;      //調用AddFooter()方法添加頁腳      AddFooter(doc, PdfPageSize.A4, margin);      //調用AddPageNumber()方法添加頁碼      AddPageNumber(doc, margin);      //保存并打開文檔      doc.SaveToFile("PDF頁腳.pdf");      System.Diagnostics.Process.Start("PDF頁腳.pdf");    }    static void AddFooter(PdfDocument doc, SizeF pageSize, PdfMargins margin)    {      //初始化一個PdfPageTemplateElement對象，用于創建頁腳      PdfPageTemplateElement footerSpace = new PdfPageTemplateElement(pageSize.Width, margin.Bottom);      footerSpace.Foreground = true;      doc.Template.Bottom = footerSpace;      //在頁腳部分繪入文字      PdfTrueTypeFont font = new PdfTrueTypeFont(new Font("Arial Unicode MS", 10f), true);      PdfStringFormat format = new PdfStringFormat(PdfTextAlignment.Center);      String headerText = "Website : www.wto.org";      float x = PdfPageSize.A4.Width / 2;      float y = 0;      footerSpace.Graphics.DrawString(headerText, font, PdfBrushes.Black, x, y, format);    }    static void AddPageNumber(PdfDocument doc, PdfMargins margin)    {      //添加頁碼到頁腳部分      foreach (PdfPageBase page in doc.Pages)      {        PdfStringFormat format1 = new PdfStringFormat(PdfTextAlignment.Left);        int x1 = Convert.ToInt32(page.Canvas.ClientSize.Width / 2);        int y1 = Convert.ToInt32(page.Canvas.ClientSize.Height - margin.Bottom + 20);        Rectangle bounds = new Rectangle(x1, y1, 20, 20);        PdfPageNumberField field = new PdfPageNumberField();        PdfTrueTypeFont font = new PdfTrueTypeFont(new Font("Arial Unicode MS", 10f), true);        field.Font = font;        field.StringFormat = format1;        field.Brush = PdfBrushes.Black;        field.Bounds = bounds;        field.Draw(page.Canvas);      }    }  }}

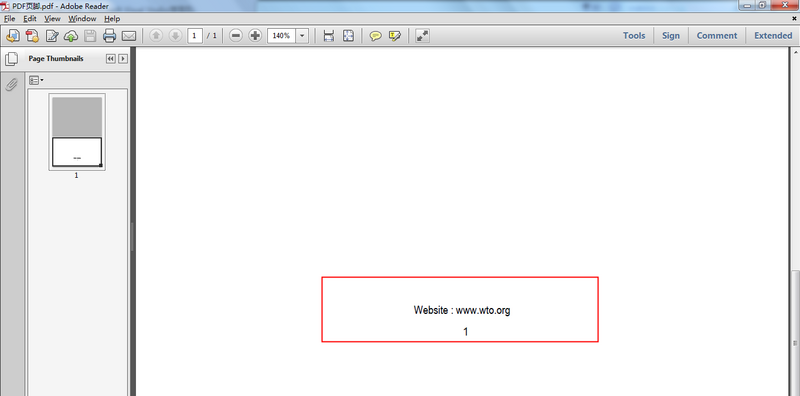

頁腳添加效果：

C#,PDF,頁眉,頁腳,代碼

2.給現有PDF文檔添加頁眉頁腳

【C#】

using Spire.Pdf;using Spire.Pdf.AutomaticFields;using Spire.Pdf.Graphics;using System;using System.Drawing;namespace PdfHeader{  class Program  {    static void Main(string[] args)    {      //加載一個測試文檔      PdfDocument existingPdf = new PdfDocument();      existingPdf.LoadFromFile("Test.pdf");      //調用DrawHeader方法在現有文檔添加頁眉      DrawHeader(existingPdf);      //調用DrawFooter方法在現有文檔添加頁腳      DrawFooter(existingPdf);      //保存并打開文檔      existingPdf.SaveToFile("output.pdf");      System.Diagnostics.Process.Start("output.pdf");    }    //在頁面上方空白部位繪制頁眉    static void DrawHeader(PdfDocument doc)    {      //獲取頁面大小      SizeF pageSize = doc.Pages[0].Size;      //聲明x,y兩個float類型變量      float x = 90;      float y = 20;      for (int i = 0; i < doc.Pages.Count; i++)      {        //在每一頁的指定位置繪制圖片        PdfImage headerImage = PdfImage.FromFile("logo.png");        float width = headerImage.Width / 7;        float height = headerImage.Height / 7;        doc.Pages[i].Canvas.DrawImage(headerImage, x, y, width, height);        //在每一頁的指定位置繪制橫線        PdfPen pen = new PdfPen(PdfBrushes.Gray, 0.5f);        doc.Pages[i].Canvas.DrawLine(pen, x, y + height + 2, pageSize.Width - x, y + height + 2);      }    }    //在頁面下方空白部位繪制頁腳    static void DrawFooter(PdfDocument doc)    {      //獲取頁面大小      SizeF pageSize = doc.Pages[0].Size;      //聲明x,y兩個float類型變量      float x = 90;      float y = pageSize.Height - 72;      for (int i = 0; i < doc.Pages.Count; i++)      {        //在每一頁的指定位置繪制橫線        PdfPen pen = new PdfPen(PdfBrushes.Gray, 0.5f);        doc.Pages[i].Canvas.DrawLine(pen, x, y, pageSize.Width - x, y);        //在每一頁的指定位置繪制文字        y = y + 5;        PdfTrueTypeFont font = new PdfTrueTypeFont(new Font("黑體", 10f, FontStyle.Bold), true);        PdfStringFormat format = new PdfStringFormat(PdfTextAlignment.Left);        String footerText = " Website/n https://g20.org/";        doc.Pages[i].Canvas.DrawString(footerText, font, PdfBrushes.Black, x, y, format);                 //在每一頁的指定位置當前頁碼和總頁碼        PdfPageNumberField number = new PdfPageNumberField();        PdfPageCountField count = new PdfPageCountField();        PdfCompositeField compositeField = new PdfCompositeField(font, PdfBrushes.Black, "{0}/{1}", number, count);        compositeField.StringFormat = new PdfStringFormat(PdfTextAlignment.Right, PdfVerticalAlignment.Top);        SizeF size = font.MeasureString(compositeField.Text);        compositeField.Bounds = new RectangleF(pageSize.Width - x - size.Width, y, size.Width, size.Height);        compositeField.Draw(doc.Pages[i].Canvas);      }    }  }}

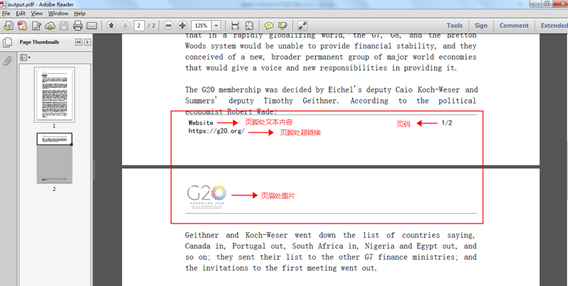

測試效果：

C#,PDF,頁眉,頁腳,代碼
