Android實現淘寶底部圖標導航欄

2019-10-21 21:32:09

字體：大中小

來源：轉載

供稿：網友

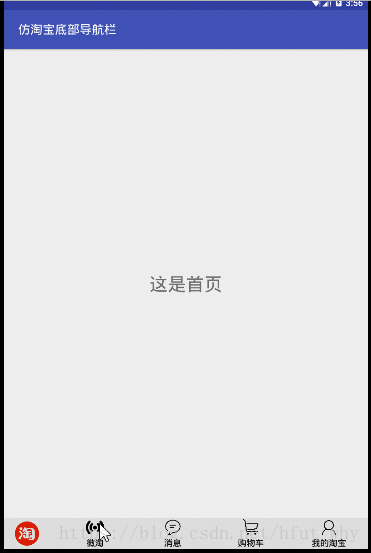

在上一篇中，簡單的使用透明主題的Activity實現了仿微信右側頂部的對話框，上午又花了兩個小時研究了一下淘寶底部的導航欄實現，網上的做法也有很多，今天我就使用一種通過基本控件加上布局的方式，沒有任何的自定義風格，控件等來實現，還是老樣子，先看一下效果圖：

Android,淘寶,圖標,導航欄

下面就來具體看一看如何實現的，還是按照步驟來吧：

繪制主界面

activity_layout.xml代碼如下：

<?xml version="1.0" encoding="utf-8"?><RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"  xmlns:app="http://schemas.android.com/apk/res-auto"  xmlns:tools="http://schemas.android.com/tools"  android:layout_width="match_parent"  android:layout_height="match_parent"  android:fitsSystemWindows="true"  android:orientation="vertical"  tools:context=".MainActivity">   <FrameLayout    android:id="@+id/fragment_container"    android:layout_marginBottom="50dp"    android:layout_width="match_parent"    android:layout_height="match_parent">   </FrameLayout>   <LinearLayout    android:layout_width="match_parent"    android:layout_height="50dp"    android:layout_alignParentBottom="true"    android:background="@color/noCheckedColor">     <RelativeLayout      android:gravity="center"      android:layout_width="wrap_content"      android:layout_height="match_parent">    <ImageView      android:layout_marginTop="5dp"      android:id="@+id/title_image"      android:layout_marginLeft="18dp"      android:layout_width="40dp"      android:layout_height="40dp"      android:background="@drawable/taobao" />       <LinearLayout        android:gravity="center"        android:orientation="vertical"        android:id="@+id/first_page_layout"        android:layout_width="60dp"        android:layout_height="wrap_content">      <ImageView        android:id="@+id/first_page_icon"        android:layout_width="30dp"        android:layout_height="30dp"        android:background="@drawable/firstpage" />       <TextView        android:textColor="#000000"        android:id="@+id/first_page_text"        android:layout_width="wrap_content"        android:layout_height="wrap_content"        android:gravity="center"        android:text="首頁" />      </LinearLayout>     </RelativeLayout>       <LinearLayout        android:layout_marginLeft="26dp"        android:layout_width="match_parent"        android:layout_height="wrap_content"        android:orientation="horizontal"        android:weightSum="4">         <LinearLayout          android:id="@+id/micro_tao_layout"          android:layout_width="0dp"          android:layout_height="match_parent"          android:layout_weight="1"          android:gravity="center"          android:orientation="vertical">           <ImageView            android:id="@+id/microtao_icon"            android:layout_width="30dp"            android:layout_height="30dp"            android:background="@drawable/microtao" />           <TextView            android:textColor="#000000"            android:id="@+id/microtao_text"            android:layout_width="match_parent"            android:layout_height="wrap_content"            android:gravity="center"            android:text="微淘" />        </LinearLayout>         <LinearLayout          android:id="@+id/message_layout"          android:layout_width="0dp"          android:layout_height="match_parent"          android:layout_weight="1"          android:gravity="center"          android:orientation="vertical">           <ImageView            android:id="@+id/message_icon"            android:layout_width="30dp"            android:layout_height="30dp"            android:background="@drawable/message" />           <TextView            android:textColor="#000000"            android:id="@+id/message_text"            android:layout_width="match_parent"            android:layout_height="wrap_content"            android:gravity="center"            android:text="消息" />        </LinearLayout>          <LinearLayout          android:id="@+id/buycar_layout"          android:layout_width="0dp"          android:layout_height="match_parent"          android:layout_weight="1"          android:gravity="center"          android:orientation="vertical">           <ImageView            android:id="@+id/buycar_icon"            android:layout_width="30dp"            android:layout_height="30dp"            android:background="@drawable/buycar" />           <TextView            android:textColor="#000000"            android:id="@+id/buycar_text"            android:layout_width="match_parent"            android:layout_height="wrap_content"            android:gravity="center"            android:text="購物車" />        </LinearLayout>         <LinearLayout          android:id="@+id/myfile_layout"          android:layout_width="0dp"          android:layout_height="match_parent"          android:layout_weight="1"          android:gravity="center"          android:orientation="vertical">           <ImageView            android:id="@+id/myfile_icon"            android:layout_width="30dp"            android:layout_height="30dp"            android:background="@drawable/myfile" />           <TextView            android:textColor="#000000"            android:id="@+id/myfile_text"            android:layout_width="match_parent"            android:layout_height="wrap_content"            android:gravity="center"            android:text="我的淘寶" />        </LinearLayout>      </LinearLayout>    </LinearLayout></RelativeLayout>

界面的邏輯控制Activity:

MainActivity.java代碼：

package com.hfut.enmulatetaobaonavbar; import android.graphics.Color;import android.support.v4.app.Fragment;import android.support.v4.app.FragmentManager;import android.support.v4.app.FragmentTransaction;import android.support.v7.app.AppCompatActivity;import android.os.Bundle;import android.view.View;import android.widget.ImageView;import android.widget.LinearLayout;import android.widget.TextView; import com.hfut.enmulatetaobaonavbar.fragment.BuycarFragment;import com.hfut.enmulatetaobaonavbar.fragment.FirstPageFragment;import com.hfut.enmulatetaobaonavbar.fragment.MessageFragment;import com.hfut.enmulatetaobaonavbar.fragment.MicroTaoFragment;import com.hfut.enmulatetaobaonavbar.fragment.MyfileFragment; /** * @author why * @date 2018-10-3 11:12:39 */public class MainActivity extends AppCompatActivity implements View.OnClickListener {   LinearLayout microTaoLay;  LinearLayout messageLay;  LinearLayout buycarLay;  LinearLayout myfileLay;  LinearLayout firstPageLay;   ImageView microTaoIcon;  ImageView messageIcon;  ImageView buycarIcon;  ImageView myfileIcon;  ImageView firstPageIcon;  ImageView titleImage;   TextView microTaoText;  TextView messageText;  TextView buycarText;  TextView myfileText;    FragmentManager manager;  FragmentTransaction transaction;  Fragment firFragment, microFragment, messageFragment, buycarFragment, myfileFragment;   @Override  protected void onCreate(Bundle savedInstanceState) {    super.onCreate(savedInstanceState);    setContentView(R.layout.activity_main);     manager = getSupportFragmentManager();    transaction = manager.beginTransaction();    firFragment = new FirstPageFragment();    transaction.add(R.id.fragment_container, firFragment);    transaction.commit();    initUI();  }   private void initUI() {    microTaoLay = findViewById(R.id.micro_tao_layout);    messageLay = findViewById(R.id.message_layout);    buycarLay = findViewById(R.id.buycar_layout);    myfileLay = findViewById(R.id.myfile_layout);    firstPageLay = findViewById(R.id.first_page_layout);    firstPageLay.setVisibility(View.INVISIBLE);     microTaoIcon = findViewById(R.id.microtao_icon);    messageIcon = findViewById(R.id.message_icon);    buycarIcon = findViewById(R.id.buycar_icon);    myfileIcon = findViewById(R.id.myfile_icon);    firstPageIcon = findViewById(R.id.first_page_icon);    titleImage = findViewById(R.id.title_image);     microTaoText = findViewById(R.id.microtao_text);    messageText = findViewById(R.id.message_text);    buycarText = findViewById(R.id.buycar_text);    myfileText = findViewById(R.id.myfile_text);     microTaoLay.setOnClickListener(this);    messageLay.setOnClickListener(this);    buycarLay.setOnClickListener(this);    myfileLay.setOnClickListener(this);    firstPageLay.setOnClickListener(this);   }   @Override  public void onClick(View v) {    transaction = manager.beginTransaction();    hideFragment(transaction);//隱藏之前的Fragment    switch (v.getId()) {      case R.id.micro_tao_layout:        microFragment = new MicroTaoFragment();        transaction.add(R.id.fragment_container, microFragment);        transaction.commit();        microTaoIcon.setImageDrawable(getResources().getDrawable(R.drawable.microtao_choosen));        microTaoText.setTextColor(Color.RED);         //顯示首頁布局，隱藏標題淘寶圖片        if (firstPageLay.getVisibility() != View.VISIBLE) {          firstPageLay.setVisibility(View.VISIBLE);          titleImage.setVisibility(View.INVISIBLE);        }         break;      case R.id.message_layout:        messageFragment = new MessageFragment();        transaction.add(R.id.fragment_container, messageFragment);        transaction.commit();        messageIcon.setImageDrawable(getResources().getDrawable(R.drawable.message_choosen));        messageText.setTextColor(Color.RED);         //顯示首頁布局，隱藏標題淘寶圖片        if (firstPageLay.getVisibility() != View.VISIBLE) {          firstPageLay.setVisibility(View.VISIBLE);          titleImage.setVisibility(View.INVISIBLE);        }        break;      case R.id.buycar_layout:        buycarFragment = new BuycarFragment();        transaction.add(R.id.fragment_container, buycarFragment);        transaction.commit();        buycarIcon.setImageDrawable(getResources().getDrawable(R.drawable.buycar_choosen));        buycarText.setTextColor(Color.RED);         //顯示首頁布局，隱藏標題淘寶圖片        if (firstPageLay.getVisibility() != View.VISIBLE) {          firstPageLay.setVisibility(View.VISIBLE);          titleImage.setVisibility(View.INVISIBLE);        }        break;      case R.id.myfile_layout:        myfileFragment = new MyfileFragment();        transaction.add(R.id.fragment_container, myfileFragment);        transaction.commit();        myfileIcon.setImageDrawable(getResources().getDrawable(R.drawable.myfile_choosen));        myfileText.setTextColor(Color.RED);         //顯示首頁布局，隱藏標題淘寶圖片        if (firstPageLay.getVisibility() != View.VISIBLE) {          firstPageLay.setVisibility(View.VISIBLE);          titleImage.setVisibility(View.INVISIBLE);        }        break;       case R.id.first_page_layout:        firFragment = new FirstPageFragment();        transaction.add(R.id.fragment_container, firFragment);        transaction.commit();        firstPageLay.setVisibility(View.INVISIBLE);        titleImage.setVisibility(View.VISIBLE);       default:        break;    }  }   private void hideFragment(FragmentTransaction transaction) {    if (firFragment != null) {      transaction.remove(firFragment);     }    if (microFragment != null) {      transaction.remove(microFragment);      microTaoIcon.setImageDrawable(getResources().getDrawable(R.drawable.microtao));      microTaoText.setTextColor(Color.BLACK);     }    if (messageFragment != null) {      transaction.remove(messageFragment);      messageIcon.setImageDrawable(getResources().getDrawable(R.drawable.message));      messageText.setTextColor(Color.BLACK);    }    if (buycarFragment != null) {      transaction.remove(buycarFragment);      buycarIcon.setImageDrawable(getResources().getDrawable(R.drawable.buycar));      buycarText.setTextColor(Color.BLACK);    }    if (myfileFragment != null) {      transaction.remove(myfileFragment);      myfileIcon.setImageDrawable(getResources().getDrawable(R.drawable.myfile));      myfileText.setTextColor(Color.BLACK);    }  }}

Fragment對應的布局代碼（這里為了簡化，所有Fragment使用的是同一個很簡單的布局）：
fragment_layout.xml代碼：

<?xml version="1.0" encoding="utf-8"?><LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"  android:gravity="center"  android:layout_width="match_parent"  android:layout_height="match_parent">   <TextView    android:gravity="center"    android:id="@+id/tip_message"    android:textSize="30sp"    android:text="首頁"    android:layout_width="wrap_content"    android:layout_height="wrap_content" /> </LinearLayout>

自定義Fragment代碼（這里我就給出一個，其他的完全一樣，只是修改了Fragment布局中的文本內容）：
FirstPageFragment.java代碼：

package com.hfut.enmulatetaobaonavbar.fragment; import android.os.Bundle;import android.support.annotation.Nullable;import android.support.v4.app.Fragment;import android.view.LayoutInflater;import android.view.View;import android.view.ViewGroup;import android.widget.TextView; import com.hfut.enmulatetaobaonavbar.R; /** * author:why * created on: 2018/10/3 12:11 * description: */public class FirstPageFragment extends Fragment {   TextView message;  @Nullable  @Override  public View onCreateView(LayoutInflater inflater, @Nullable ViewGroup container, Bundle savedInstanceState) {    View view = inflater.inflate(R.layout.fragment_layout, container, false);    message=view.findViewById(R.id.tip_message);    message.setText("這是首頁");    return view;  }}

上面就是幾個主要的組成部分了，其他的素材就不介紹了，還有就是很多代碼可以優化的地方也沒有做在太多考慮，下面就來說一說幾個需要注意的點：
