實例講解iOS音樂播放器DOUAudioStreamer用法

2019-10-21 18:42:52

字體：大中小

來源：轉載

供稿：網友

好久沒有寫東西了，最近加班太嚴重，今天抽空把用到的音樂播放器DOUAudioStreamer整理一下，由于項目之前用的是AVPlayer，這個也可以，但是就是要先緩存一段時間再播放，老板看了之后要求，要變緩存變播放（有網時，點擊播放按鈕就立刻播放），怎么不早說！怎么不早說！怎么不早說！還能怎樣？只能原諒他，繼續敲代碼。。。。。。（還是直接上代碼吧）

一、導入三方庫

pod 'DOUAudioStreamer'

或者GitHup下載地址：https://github.com/douban/DOUAudioStreamer

二、使用

1.從demo中獲取NAKPlaybackIndicatorView文件和MusicIndicator.h和MusicIndicator.m 文件，并導入頭文件

//音樂播放#import "DOUAudioStreamer.h"#import "NAKPlaybackIndicatorView.h"#import "MusicIndicator.h"#import "Track.h"

如圖：

iOS,音樂播放器,DOUAudioStreamer

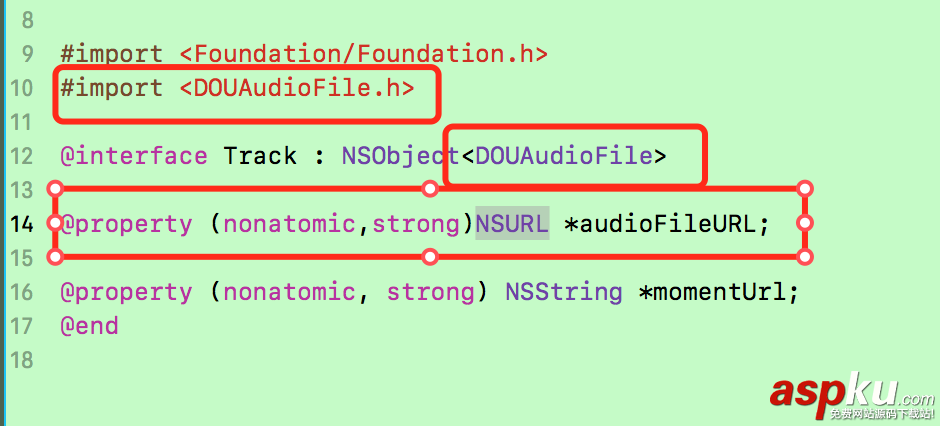

2.創建一個Track類，用于音樂播放的URL存放

iOS,音樂播放器,DOUAudioStreamer

3.需要的界面.h中，添加DOUAudioStreamer，并用單利來初始化

+ (instancetype)sharedInstance ;@property (nonatomic, strong) DOUAudioStreamer *streamer;

如圖：

iOS,音樂播放器,DOUAudioStreamer

在.m中實現：

static void *kStatusKVOKey = &kStatusKVOKey;static void *kDurationKVOKey = &kDurationKVOKey;static void *kBufferingRatioKVOKey = &kBufferingRatioKVOKey;@property (strong, nonatomic) MusicIndicator *musicIndicator;@property (nonatomic, strong) Track *audioTrack;+ (instancetype)sharedInstance { static HYNEntertainmentController *_sharedMusicVC = nil; static dispatch_once_t onceToken; dispatch_once(&onceToken, ^{  _sharedMusicVC = [[HYNEntertainmentController alloc] init];  _sharedMusicVC.streamer = [[DOUAudioStreamer alloc] init]; });  return _sharedMusicVC;}

播放按鈕事件

#pragma mark ---音樂播放按鈕-(void)playMusicStart:(UIButton *)sender{  //通過按鈕獲取cell  MusicCollectionViewCell *musicCell = (MusicCollectionViewCell *)[[sender superview] superview]; if(_playFirst == 0){//_playFirst == 0首次播放，其他為暫停  NSURL *url = [NSURL URLWithString:HttpImgUrl(musicCell.model.musicUrl)];  _audioTrack.audioFileURL = url;  @try {   [self removeStreamerObserver];  } @catch(id anException){   }  //在DOUAudioStreamer進行播放時，必須先置為nil  _streamer = nil;  _streamer = [DOUAudioStreamer streamerWithAudioFile:_audioTrack];  [self addStreamerObserver];  [_streamer play]; } if([_streamer status] == DOUAudioStreamerPaused ||  [_streamer status] == DOUAudioStreamerIdle){  [sender setBackgroundImage:[UIImage imageNamed:@"music_play_icon"] forState:UIControlStateNormal];  [_streamer play];  }else{  [sender setBackgroundImage:[UIImage imageNamed:@"music_stop_icon"] forState:UIControlStateNormal];  [_streamer pause];  } _playFirst++; }

對添加監聽

- (void)addStreamerObserver { [_streamer addObserver:self forKeyPath:@"status" options:NSKeyValueObservingOptionNew context:kStatusKVOKey]; [_streamer addObserver:self forKeyPath:@"duration" options:NSKeyValueObservingOptionNew context:kDurationKVOKey]; [_streamer addObserver:self forKeyPath:@"bufferingRatio" options:NSKeyValueObservingOptionNew context:kBufferingRatioKVOKey]; }/// 播放器銷毀- (void)dealloc{ if (_streamer !=nil) {  [_streamer pause];  [_streamer removeObserver:self forKeyPath:@"status" context:kStatusKVOKey];  [_streamer removeObserver:self forKeyPath:@"duration" context:kDurationKVOKey];  [_streamer removeObserver:self forKeyPath:@"bufferingRatio" context:kBufferingRatioKVOKey];    _streamer =nil; } }- (void)removeStreamerObserver {  [_streamer removeObserver:self forKeyPath:@"status"]; [_streamer removeObserver:self forKeyPath:@"duration"]; [_streamer removeObserver:self forKeyPath:@"bufferingRatio"];}- (void)observeValueForKeyPath:(NSString *)keyPath ofObject:(id)object change:(NSDictionary *)change context:(void *)context { if (context == kStatusKVOKey) {  [self performSelector:@selector(updateStatus)      onThread:[NSThread mainThread]     withObject:nil    waitUntilDone:NO]; } else if (context == kDurationKVOKey) {  [self performSelector:@selector(updateSliderValue:)      onThread:[NSThread mainThread]     withObject:nil    waitUntilDone:NO]; } else if (context == kBufferingRatioKVOKey) {  [self performSelector:@selector(updateBufferingStatus)      onThread:[NSThread mainThread]     withObject:nil    waitUntilDone:NO]; } else {  [super observeValueForKeyPath:keyPath ofObject:object change:change context:context]; }}- (void)updateSliderValue:(id)timer {}-(void)updateBufferingStatus{ }- (void)updateStatus { //self.musicIsPlaying = NO; _musicIndicator.state = NAKPlaybackIndicatorViewStateStopped; switch ([_streamer status]) {  case DOUAudioStreamerPlaying:   // self.musicIsPlaying = YES;   _musicIndicator.state = NAKPlaybackIndicatorViewStatePlaying;   break;  case DOUAudioStreamerPaused:   break;  case DOUAudioStreamerIdle:   break;  case DOUAudioStreamerFinished:   break;  case DOUAudioStreamerBuffering:   _musicIndicator.state = NAKPlaybackIndicatorViewStatePlaying;   break;    case DOUAudioStreamerError:   break; } }

這樣就能播放了。

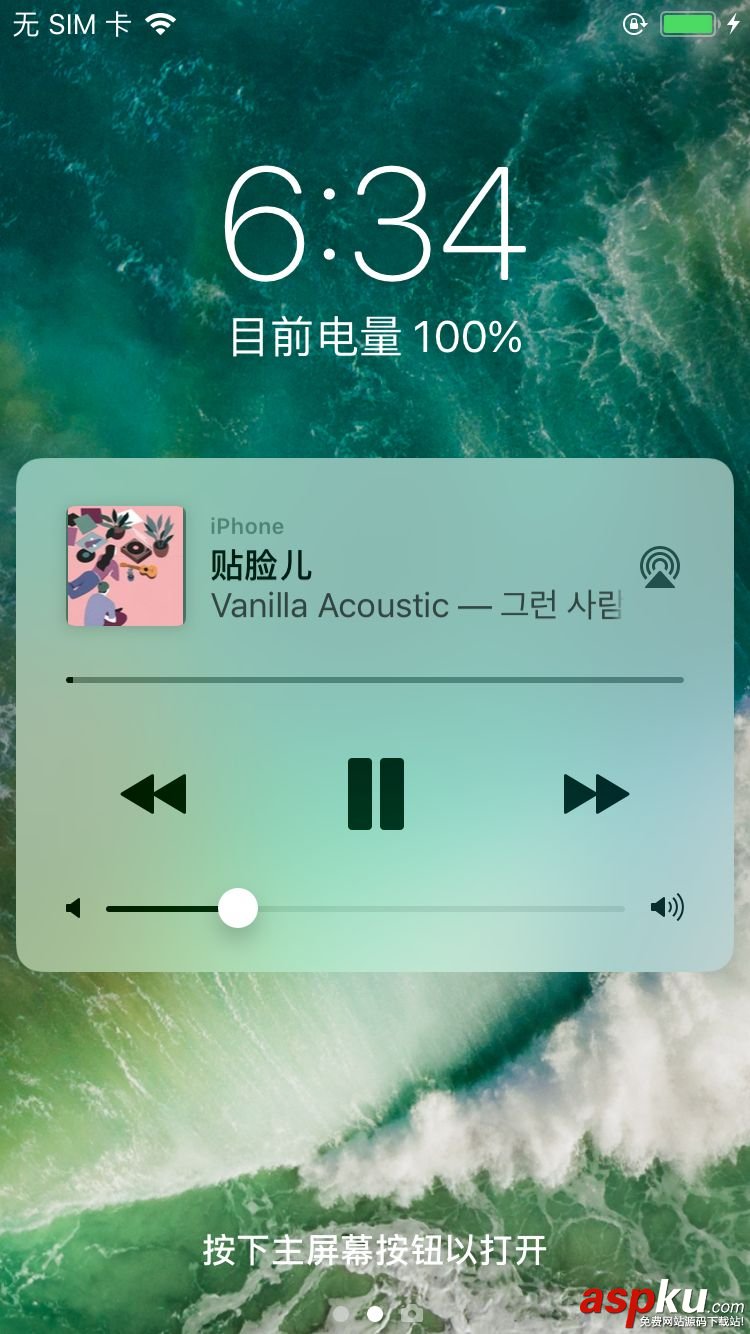

鎖屏時的音樂顯示、拔出耳機后暫停播放、監聽音頻打斷事件

-(void)viewWillAppear:(BOOL)animated{[super viewWillAppear:animated];//接受遠程控制[self becomeFirstResponder];[[UIApplication sharedApplication] beginReceivingRemoteControlEvents];}//這個不能忘記了-(BOOL)canBecomeFirstResponder{return YES;}- (void)viewDidLoad {[super viewDidLoad];//音樂播放器[self initPlayer];}#pragma mark =========================音樂播放==============================//音樂播放器-(void)initPlayer{_audioTrack = [[Track alloc] init];AVAudioSession *session = [AVAudioSession sharedInstance];[session setActive:YES error:nil];[session setCategory:AVAudioSessionCategoryPlayback error:nil];//讓app支持接受遠程控制事件[[UIApplication sharedApplication] beginReceivingRemoteControlEvents];//添加通知，拔出耳機后暫停播放[[NSNotificationCenter defaultCenter] addObserver:self selector:@selector(routeChange:) name:AVAudioSessionRouteChangeNotification object:nil];// 監聽音頻打斷事件[[NSNotificationCenter defaultCenter] addObserver:self selector:@selector(audioSessionWasInterrupted:) name:AVAudioSessionInterruptionNotification object:session];}// 監聽音頻打斷事件- (void)audioSessionWasInterrupted:(NSNotification *)notification{ //被打斷時if (AVAudioSessionInterruptionTypeBegan == [notification.userInfo[AVAudioSessionInterruptionTypeKey] intValue]){ [_streamer pause];UIButton *btn = (UIButton *)[self.view viewWithTag:2000];[btn setBackgroundImage:[UIImage imageNamed:@"music_stop_icon"] forState:UIControlStateNormal];}else if (AVAudioSessionInterruptionTypeEnded == [notification.userInfo[AVAudioSessionInterruptionTypeKey] intValue]){}}// 拔出耳機后暫停播放-(void)routeChange:(NSNotification *)notification{NSDictionary *dic=notification.userInfo;int changeReason= [dic[AVAudioSessionRouteChangeReasonKey] intValue];//等于AVAudioSessionRouteChangeReasonOldDeviceUnavailable表示舊輸出不可用if (changeReason==AVAudioSessionRouteChangeReasonOldDeviceUnavailable) {AVAudioSessionRouteDescription *routeDescription=dic[AVAudioSessionRouteChangePreviousRouteKey];AVAudioSessionPortDescription *portDescription= [routeDescription.outputs firstObject];//原設備為耳機則暫停if ([portDescription.portType isEqualToString:@"Headphones"]) {[_streamer pause];UIButton *btn = (UIButton *)[self.view viewWithTag:2000];[btn setBackgroundImage:[UIImage imageNamed:@"music_stop_icon"] forState:UIControlStateNormal];}}}//鎖屏時音樂顯示(這個方法可以在點擊播放時，調用傳值)- (void)setupLockScreenInfoWithSing:(NSString *)sign WithSigner:(NSString *)signer WithImage:(UIImage *)image{// 1.獲取鎖屏中心MPNowPlayingInfoCenter *playingInfoCenter = [MPNowPlayingInfoCenter defaultCenter];//初始化一個存放音樂信息的字典NSMutableDictionary *playingInfoDict = [NSMutableDictionary dictionary];// 2、設置歌曲名if (sign) {[playingInfoDict setObject:sign forKey:MPMediaItemPropertyAlbumTitle];}// 設置歌手名if (signer) {[playingInfoDict setObject:signer forKey:MPMediaItemPropertyArtist];}// 3設置封面的圖片//UIImage *image = [self getMusicImageWithMusicId:self.currentModel];if (image) {MPMediaItemArtwork *artwork = [[MPMediaItemArtwork alloc] initWithImage:image];[playingInfoDict setObject:artwork forKey:MPMediaItemPropertyArtwork];}// 4設置歌曲的總時長//[playingInfoDict setObject:self.currentModel.detailDuration forKey:MPMediaItemPropertyPlaybackDuration];//音樂信息賦值給獲取鎖屏中心的nowPlayingInfo屬性playingInfoCenter.nowPlayingInfo = playingInfoDict;// 5.開啟遠程交互[[UIApplication sharedApplication] beginReceivingRemoteControlEvents];}//鎖屏時操作- (void)remoteControlReceivedWithEvent:(UIEvent *)receivedEvent {if (receivedEvent.type == UIEventTypeRemoteControl) {UIButton *sender = (UIButton *)[self.view viewWithTag:2000];switch (receivedEvent.subtype) {//判斷是否為遠程控制case UIEventSubtypeRemoteControlPause:[[HYNEntertainmentController sharedInstance].streamer pause];[sender setBackgroundImage:[UIImage imageNamed:@"music_stop_icon"] forState:UIControlStateNormal];break;case UIEventSubtypeRemoteControlStop:break;case UIEventSubtypeRemoteControlPlay:[[HYNEntertainmentController sharedInstance].streamer play];[sender setBackgroundImage:[UIImage imageNamed:@"music_play_icon"] forState:UIControlStateNormal];break;case UIEventSubtypeRemoteControlTogglePlayPause:break;case UIEventSubtypeRemoteControlNextTrack:break;case UIEventSubtypeRemoteControlPreviousTrack:break;default:break;}}}

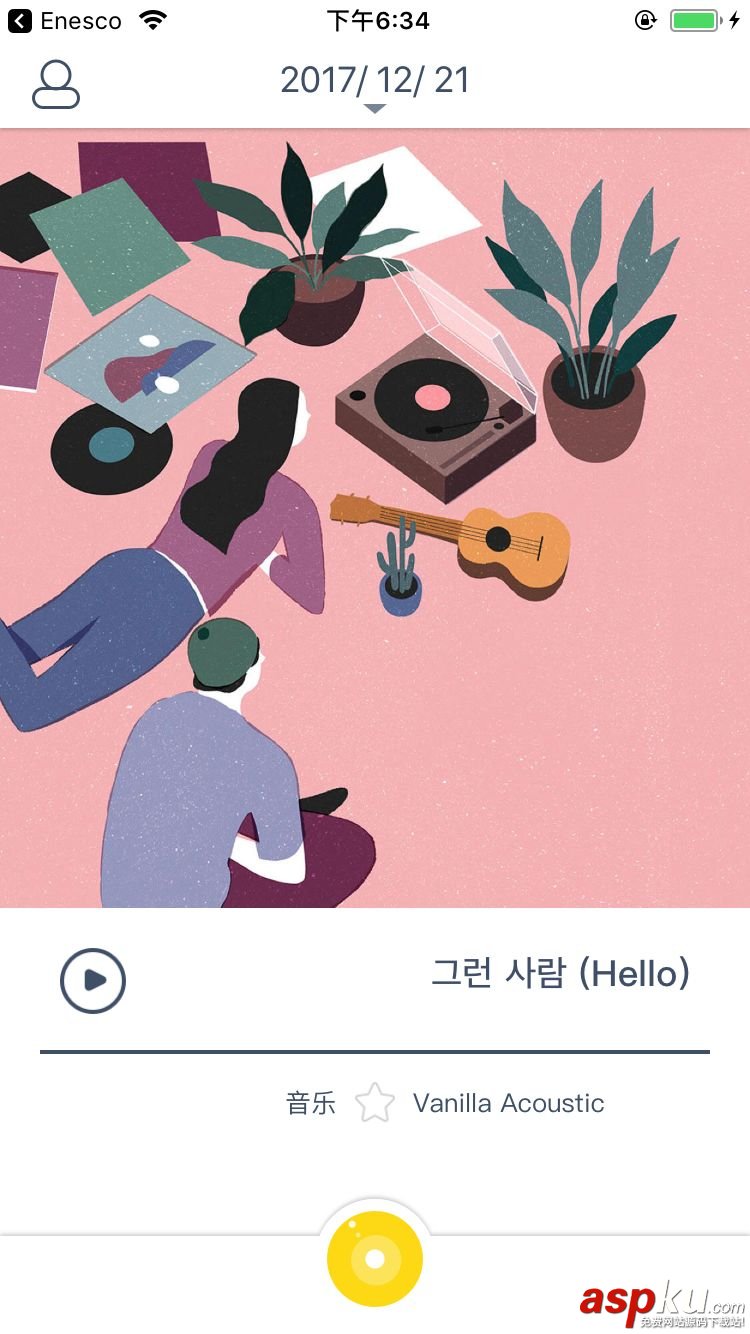

整體圖片：

iOS,音樂播放器,DOUAudioStreamer
