前言
圖片瀏覽器大家應該都用過,這方面的第三方也有很多,不過有時候第三方會跟我們的需求有一些出入,這就需要我們要么對第三方進行修改要么自己重新定制。我是比較喜歡自己重新定制的,在這給大家簡單介紹一下我定制的圖片瀏覽器,算是給大家提供一個思路,可以在此基礎上進行修改完善。
實現原理
通過彈出UIViewController的形式來展示圖片,使用UICollectionView并添加手勢來實現圖片瀏覽時圖片的間隔。
首先創建一個繼承于UIViewController的控制器,來作為圖片瀏覽器的控制器,并實現相應的代碼如下:
示例代碼
#import <UIKit/UIKit.h>#import "RHPhotoBrowser.h"@interface RHPhotoBrowserController : UIViewController- (instancetype)initWithType:(RHPhotoSourceType)type imageArr:(NSArray *)imageArr selectIndex:(NSInteger)selectIndex;@end
#import "RHPhotoBrowserController.h"#import "RHPhotoBrowserCell.h"#define Cell_PhotoBrowser @"Cell_PhotoBrowser"#define PhotoSpace 10 // 圖片間距@interface RHPhotoBrowserController () <UICollectionViewDataSource, UICollectionViewDelegate, UICollectionViewDelegateFlowLayout>@property (nonatomic, strong) UICollectionView * collection;@property (nonatomic, strong) UIPageControl * pageControl;@property (nonatomic, strong) NSMutableArray * dataArr;@property (nonatomic, assign) RHPhotoSourceType type;@property (nonatomic, assign) NSInteger selectIndex;@property (nonatomic, assign) CGFloat panCenterX;@property (nonatomic, assign) CGFloat startOffsetX;@property (nonatomic, assign) CGFloat offsetX;@property (nonatomic, assign) CGFloat panX;@end@implementation RHPhotoBrowserController- (instancetype)initWithType:(RHPhotoSourceType)type imageArr:(NSArray *)imageArr selectIndex:(NSInteger)selectIndex { self = [super init]; if (self) { [self.dataArr removeAllObjects]; [self.dataArr addObjectsFromArray:imageArr]; _type = type; _selectIndex = selectIndex; } return self;}- (void)viewDidLoad { [super viewDidLoad]; // Do any additional setup after loading the view. [self addSubviews]; [self makeConstraintsForUI];}#pragma mark - add subviews- (void)addSubviews { self.view.backgroundColor = [UIColor blackColor]; [self.view addSubview:self.collection]; [self.view addSubview:self.pageControl];}- (void)makeConstraintsForUI { [_collection mas_makeConstraints:^(MASConstraintMaker *make) { make.top.left.right.bottom.mas_equalTo(0); }]; [_pageControl mas_makeConstraints:^(MASConstraintMaker *make) { make.left.right.mas_equalTo(0); make.bottom.mas_equalTo(-SS(50)); make.height.mas_equalTo(20); }]; [self performSelector:@selector(setCollectionContentOffset) withObject:nil afterDelay:0.1];}- (void)setCollectionContentOffset { RHWeakSelf; dispatch_async(dispatch_get_main_queue(), ^{ [weakSelf.collection setContentOffset:CGPointMake((Screen_Width + PhotoSpace) * _selectIndex, 0) animated:NO]; weakSelf.pageControl.numberOfPages = weakSelf.dataArr.count; weakSelf.pageControl.currentPage = _selectIndex; }); _startOffsetX = _collection.contentOffset.x;}#pragma mark - GestureRecognizer event- (void)panCollection:(UIPanGestureRecognizer *)pan { _panCenterX = [pan translationInView:self.collection].x; if (pan.state == UIGestureRecognizerStateBegan) { _startOffsetX = _collection.contentOffset.x; _offsetX = 0; _panX = 0; } if (_selectIndex == 0) { if (_panCenterX > 0) { CGFloat s = (Screen_Width - _panCenterX) / Screen_Width; _offsetX += (_panCenterX - _panX) * s; _panX = _panCenterX; [self.collection setContentOffset:CGPointMake(-_offsetX, 0) animated:NO]; } else { if (self.dataArr.count == 1) { CGFloat s = (Screen_Width + _panCenterX) / Screen_Width; _offsetX += (_panCenterX - _panX) * s; _panX = _panCenterX; [self.collection setContentOffset:CGPointMake(-_offsetX, 0) animated:NO]; } else { [self.collection setContentOffset:CGPointMake(_startOffsetX - _panCenterX, 0) animated:NO]; } } } else if (_selectIndex == self.dataArr.count - 1) { if (_panCenterX < 0) { CGFloat s = (Screen_Width + _panCenterX) / Screen_Width; _offsetX += (_panCenterX - _panX) * s; _panX = _panCenterX; [self.collection setContentOffset:CGPointMake(_startOffsetX - _offsetX, 0) animated:NO]; } else { [self.collection setContentOffset:CGPointMake(_startOffsetX - _panCenterX, 0) animated:NO]; } } else { [self.collection setContentOffset:CGPointMake(_startOffsetX - _panCenterX, 0) animated:NO]; } if (pan.state == UIGestureRecognizerStateEnded) { if ([self absoluteValue:_panCenterX] > Screen_Width/3) { if (_panCenterX < 0) { _selectIndex += 1; } else { _selectIndex -= 1; } if (_selectIndex == self.dataArr.count) { _selectIndex = self.dataArr.count - 1; } else if (_selectIndex == -1) { _selectIndex = 0; } [self.collection setContentOffset:CGPointMake((Screen_Width + PhotoSpace) * _selectIndex, 0) animated:YES]; self.pageControl.currentPage = _selectIndex; } else { [self.collection setContentOffset:CGPointMake(_startOffsetX, 0) animated:YES]; } }}- (void)swipeCollection:(UISwipeGestureRecognizer *)swipe { if (swipe.direction == UISwipeGestureRecognizerDirectionLeft) { _selectIndex += 1; } else if (swipe.direction == UISwipeGestureRecognizerDirectionRight) { _selectIndex -= 1; } if (_selectIndex == self.dataArr.count) { _selectIndex = self.dataArr.count - 1; } else if (_selectIndex == -1) { _selectIndex = 0; } self.pageControl.currentPage = _selectIndex; [self.collection setContentOffset:CGPointMake((Screen_Width + PhotoSpace) * _selectIndex, 0) animated:YES];}// 返回value的絕對值- (CGFloat)absoluteValue:(CGFloat)value { if (value < 0) { return -value; } return value;}#pragma mark - collection delegate- (NSInteger)collectionView:(UICollectionView *)collectionView numberOfItemsInSection:(NSInteger)section { return self.dataArr.count;}- (UICollectionViewCell *)collectionView:(UICollectionView *)collectionView cellForItemAtIndexPath:(NSIndexPath *)indexPath { RHPhotoBrowserCell * cell = [collectionView dequeueReusableCellWithReuseIdentifier:Cell_PhotoBrowser forIndexPath:indexPath]; if (indexPath.row < self.dataArr.count) { if (_type == RHPhotoSourceTypeImage) { UIImage * image = [self.dataArr objectAtIndex:indexPath.row]; [cell configCellWithImage:image]; } else if (_type == RHPhotoSourceTypeUrl) { NSString * url = [self.dataArr objectAtIndex:indexPath.row]; [cell configCellWithUrl:url]; } else if (_type == RHPhotoSourceTypeFilePath) { NSString * filePath = [self.dataArr objectAtIndex:indexPath.row]; [cell configCellWithFilePath:filePath]; } else if (_type == RHPhotoSourceTypeFileName) { NSString * fileName = [self.dataArr objectAtIndex:indexPath.row]; [cell configCellWithFileName:fileName]; } } return cell;}- (CGSize)collectionView:(UICollectionView *)collectionView layout:(UICollectionViewLayout *)collectionViewLayout sizeForItemAtIndexPath:(NSIndexPath *)indexPath { return CGSizeMake(Screen_Width, Screen_Height);}- (CGFloat)collectionView:(UICollectionView *)collectionView layout:(UICollectionViewLayout *)collectionViewLayout minimumLineSpacingForSectionAtIndex:(NSInteger)section { return PhotoSpace;}- (CGFloat)collectionView:(UICollectionView *)collectionView layout:(UICollectionViewLayout *)collectionViewLayout minimumInteritemSpacingForSectionAtIndex:(NSInteger)section { return 0;}- (void)collectionView:(UICollectionView *)collectionView didSelectItemAtIndexPath:(NSIndexPath *)indexPath { [self dismissViewControllerAnimated:YES completion:nil];}#pragma mark - setter and getter- (UICollectionView *)collection { if (!_collection) { UICollectionViewFlowLayout * layout = [[UICollectionViewFlowLayout alloc] init]; layout.scrollDirection = UICollectionViewScrollDirectionHorizontal; UICollectionView * cv = [[UICollectionView alloc] initWithFrame:CGRectZero collectionViewLayout:layout]; cv.backgroundColor = [UIColor blackColor]; cv.delegate = self; cv.dataSource = self; cv.showsHorizontalScrollIndicator = NO; [cv registerClass:[RHPhotoBrowserCell class] forCellWithReuseIdentifier:Cell_PhotoBrowser]; UIPanGestureRecognizer * pan = [[UIPanGestureRecognizer alloc] initWithTarget:self action:@selector(panCollection:)]; [cv addGestureRecognizer:pan]; UISwipeGestureRecognizer * swipeL = [[UISwipeGestureRecognizer alloc] initWithTarget:self action:@selector(swipeCollection:)]; swipeL.direction = UISwipeGestureRecognizerDirectionLeft; [cv addGestureRecognizer:swipeL]; UISwipeGestureRecognizer * swipeR = [[UISwipeGestureRecognizer alloc] initWithTarget:self action:@selector(swipeCollection:)]; swipeR.direction = UISwipeGestureRecognizerDirectionRight; [cv addGestureRecognizer:swipeR]; _collection = cv; } return _collection;}- (UIPageControl *)pageControl { if (!_pageControl) { UIPageControl * pageControl = [[UIPageControl alloc] init]; pageControl.pageIndicatorTintColor = [[UIColor lightGrayColor] colorWithAlphaComponent:0.9]; pageControl.currentPageIndicatorTintColor = [UIColor whiteColor]; pageControl.userInteractionEnabled = NO; _pageControl = pageControl; } return _pageControl;}- (NSMutableArray *)dataArr { if (!_dataArr) { _dataArr = [NSMutableArray array]; } return _dataArr;}@end
其實到此基本已經結束了,大家實現一個相對應的cell就可以了。使用時直接通過外漏的方法創建該控制器對象并彈出該控制器即可。
為了更加方便的調用,我又增加了一個NSObject的類來控制以上控制器的調用。如下:
#import <Foundation/Foundation.h>typedef NS_ENUM(NSUInteger, RHPhotoSourceType) { RHPhotoSourceTypeImage = 0, RHPhotoSourceTypeUrl = 1, RHPhotoSourceTypeFilePath = 2, RHPhotoSourceTypeFileName = 3};@interface RHPhotoBrowser : NSObject+ (RHPhotoBrowser *)shared;- (void)browseImageWithType:(RHPhotoSourceType)type imageArr:(NSArray *)imageArr selectIndex:(NSInteger)selectIndex;@end
#import "RHPhotoBrowser.h"#import "RHPhotoBrowserController.h"@implementation RHPhotoBrowser+ (RHPhotoBrowser *)shared { static RHPhotoBrowser * helper = nil; static dispatch_once_t onceToken; dispatch_once(&onceToken, ^{ helper = [[RHPhotoBrowser alloc] init]; }); return helper;}- (void)browseImageWithType:(RHPhotoSourceType)type imageArr:(NSArray *)imageArr selectIndex:(NSInteger)selectIndex { if (selectIndex > imageArr.count - 1) { selectIndex = 0; } UIViewController * rootVC = [UIApplication sharedApplication].delegate.window.rootViewController; RHPhotoBrowserController * browser = [[RHPhotoBrowserController alloc] initWithType:type imageArr:imageArr selectIndex:selectIndex]; [rootVC presentViewController:browser animated:YES completion:nil];}@end
這樣使用的時候只需要使用該類就可以了。這里大家可以將單例去掉,將對象方法直接改為類方法即可。我是習慣了,所以這樣寫了。
再給大家看一下使用方法一步調用:
[[RHPhotoBrowser shared] browseImageWithType:RHPhotoSourceTypeFileName imageArr:@[@"c006", @"c007", @"c008", @"c009", @"c010"] selectIndex:2];

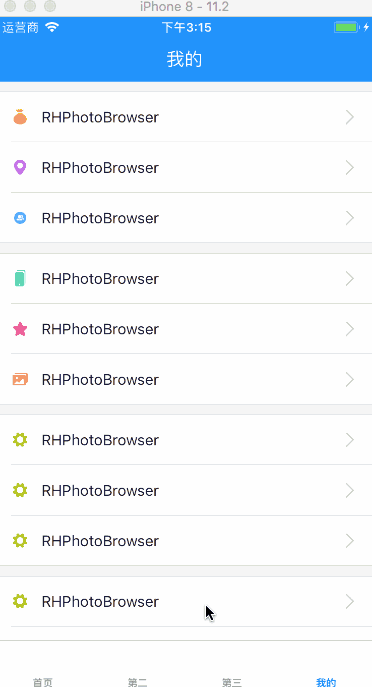

效果如下:
最后,還是希望能夠幫助到有需要的朋友們,愿我們能夠一起學習進步,在開發的道路上越走越順利?。?!
