iOS實現步驟進度條功能實例代碼

2019-10-21 18:39:18

字體：大中小

來源：轉載

供稿：網友

前言

在開發中,我們經常在很多場景下需要用到進度條,比如文件的下載,或者文件的上傳等。本文主要給大家介紹的是一個步驟進度條效果，步驟進度條效果參考

iOS,步驟,進度條,例代碼

iOS UIKit 框架中并沒有提供類似的控件，我們可以使用 UIProgressView、UIView、UILabel 組合實現步驟進度條效果。

UIProgressView——實現水平的進度條效果；
UIView——把UIView裁剪成圓形，實現索引節點效果；
UILabel——每個節點下面的提示文字。

源碼

將步驟進度條封裝成一個 HQLStepView 類，它是 UIView 的子類。

HQLStepView.h 文件

#import <UIKit/UIKit.h>@interface HQLStepView : UIView// 指定初始化方法- (instancetype)initWithFrame:(CGRect)frame titlesArray:(NSArray *)titlesArray stepIndex:(NSUInteger)stepIndex;// 設置當前步驟- (void)setStepIndex:(NSUInteger)stepIndex animation:(BOOL)animation;@end

HQLStepView.m 文件

#import "HQLStepView.h"// 步驟條主題色#define TINT_COLOR [UIColor colorWithRed:35/255.f green:135/255.f blue:255/255.f alpha:1]@interface HQLStepView ()@property (nonatomic, copy) NSArray *titlesArray;@property (nonatomic, assign) NSUInteger stepIndex;@property (nonatomic, strong) UIProgressView *progressView;@property (nonatomic, strong) NSMutableArray *circleViewArray;@property (nonatomic, strong) NSMutableArray *titleLabelArray;@property (nonatomic, strong) UILabel *indicatorLabel;@end@implementation HQLStepView#pragma mark - Init- (instancetype)initWithFrame:(CGRect)frame titlesArray:(NSArray *)titlesArray stepIndex:(NSUInteger)stepIndex { self = [super initWithFrame:frame]; if (self) { _titlesArray = [titlesArray copy]; _stepIndex = stepIndex; // 進度條 [self addSubview:self.progressView];  for (NSString *title in _titlesArray) {    // 圓圈  UIView *circle = [[UIView alloc] initWithFrame:CGRectMake(0, 0, 13, 13)];  circle.backgroundColor = [UIColor lightGrayColor];  circle.layer.cornerRadius = 13.0f / 2;  [self addSubview:circle];  [self.circleViewArray addObject:circle];    // 標題  UILabel *label = [[UILabel alloc] init];  label.text = title;  label.font = [UIFont systemFontOfSize:14];  label.textAlignment = NSTextAlignmentCenter;  [self addSubview:label];  [self.titleLabelArray addObject:label]; }  // 當前索引數字 [self addSubview:self.indicatorLabel]; } return self;}// 布局更新頁面元素- (void)layoutSubviews { NSInteger perWidth = self.frame.size.width / self.titlesArray.count;  // 進度條 self.progressView.frame = CGRectMake(0, 0, self.frame.size.width - perWidth, 1); self.progressView.center = CGPointMake(self.frame.size.width / 2, self.frame.size.height / 4);  CGFloat startX = self.progressView.frame.origin.x; for (int i = 0; i < self.titlesArray.count; i++) { // 圓圈 UIView *cycle = self.circleViewArray[i]; if (cycle) {  cycle.center = CGPointMake(i * perWidth + startX, self.progressView.center.y); }  // 標題 UILabel *label = self.titleLabelArray[i]; if (label) {  label.frame = CGRectMake(perWidth * i, self.frame.size.height / 2, self.frame.size.width / self.titlesArray.count, self.frame.size.height / 2 ); } } self.stepIndex = self.stepIndex;}#pragma mark - Custom Accessors- (UIProgressView *)progressView { if (!_progressView) { _progressView = [[UIProgressView alloc] initWithProgressViewStyle:UIProgressViewStyleDefault]; _progressView.progressTintColor = TINT_COLOR; _progressView.progress = self.stepIndex / ((self.titlesArray.count - 1) * 1.0); } return _progressView;}- (UILabel *)indicatorLabel { if (!_indicatorLabel) { _indicatorLabel = [[UILabel alloc] initWithFrame:CGRectMake(0, 0, 23, 23)]; _indicatorLabel.textColor = TINT_COLOR; _indicatorLabel.textAlignment = NSTextAlignmentCenter; _indicatorLabel.backgroundColor = [UIColor whiteColor]; _indicatorLabel.layer.cornerRadius = 23.0f / 2; _indicatorLabel.layer.borderColor = [TINT_COLOR CGColor]; _indicatorLabel.layer.borderWidth = 1; _indicatorLabel.layer.masksToBounds = YES; } return _indicatorLabel;}- (NSMutableArray *)circleViewArray { if (!_circleViewArray) { _circleViewArray = [[NSMutableArray alloc] initWithCapacity:self.titlesArray.count]; } return _circleViewArray;}- (NSMutableArray *)titleLabelArray { if (!_titleLabelArray) { _titleLabelArray = [[NSMutableArray alloc] initWithCapacity:self.titlesArray.count]; } return _titleLabelArray;}// 設置當前進度索引，更新圓形圖片、文本顏色、當前索引數字- (void)setStepIndex:(NSUInteger)stepIndex { for (int i = 0; i < self.titlesArray.count; i++) { UIView *cycle = self.circleViewArray[i]; UILabel *label = self.titleLabelArray[i]; if (stepIndex >= i) {  cycle.backgroundColor = TINT_COLOR;  label.textColor = TINT_COLOR; } else {  cycle.backgroundColor = [UIColor lightGrayColor];  label.textColor = [UIColor lightGrayColor]; } }}#pragma mark - Public- (void)setStepIndex:(NSUInteger)stepIndex animation:(BOOL)animation { if (stepIndex < self.titlesArray.count) { // 更新顏色 self.stepIndex = stepIndex; // 設置進度條 [self.progressView setProgress:stepIndex / ((self.titlesArray.count - 1) * 1.0) animated:animation]; // 設置當前索引數字 self.indicatorLabel.text = [NSString stringWithFormat:@"%lu", stepIndex + 1]; self.indicatorLabel.center = ((UIView *)[self.circleViewArray objectAtIndex:stepIndex]).center; }}@end

接口調用：

- (void)viewDidLoad { [super viewDidLoad];  // 初始化 _hqlStepView = [[HQLStepView alloc] initWithFrame:CGRectMake(0, 200, self.view.frame.size.width, 60) titlesArray:@[@"第一步", @"第二步", @"第三步"] stepIndex:0]; [self.view addSubview:_hqlStepView];}- (void)viewDidAppear:(BOOL)animated { [super viewDidAppear:animated];  // 設置當前步驟，步驟索引=數組索引 [_hqlStepView setStepIndex:0 animation:YES];}

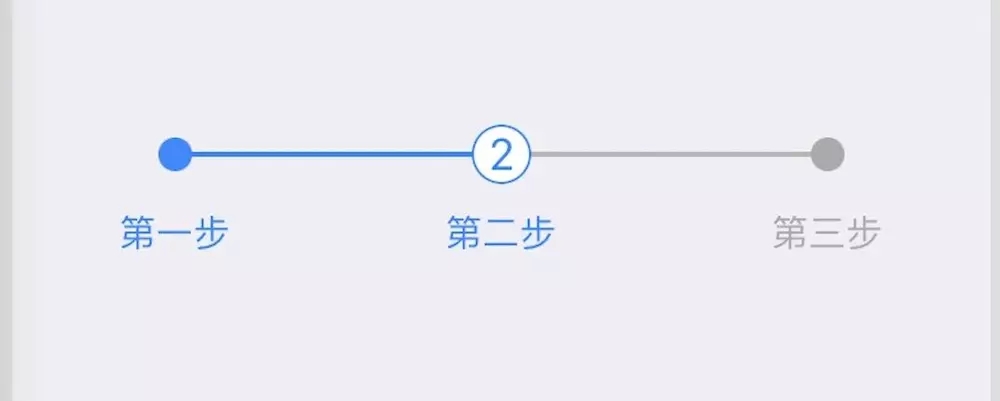

效果：

iOS,步驟,進度條,例代碼
